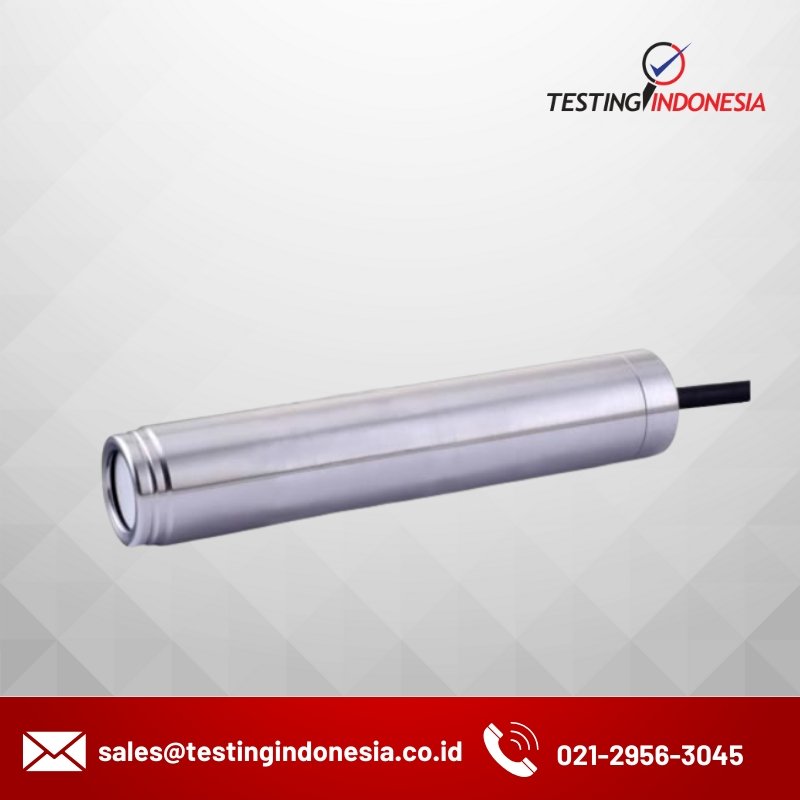

Stainless Steel Level Sensor

Description

The LMK307 stainless steel level sensor is only 27mm in diameter and has a flush-mounted ceramic sensor giving it excellent media compatibility.  Together with its IP68 continuous submersion rating, it is ideal to use in water, wastewater and leachate applications such as drinking water system, groundwater monitoring, stormwater systems, water recycling and wastewater treatment plants.

Plus, thanks to its optional IS and EX ia approvals, the stainless steel level sensor it is also suitable for liquid level monitoring in fuel storage, fuel tank and biogas farms.

The LMK307 stainless steel level sensor offers optimum resolution through its low noise characteristics coupled with very good accuracy of 0.5 % full-scale output and excellent long-term stability.

Specifications

  • 27mm Diameter
  • Ranges: 0-4 mH2O up to 0-250 mH2O
  • Outputs: 2 wire 4-20mA, 3 wire 0-20mA / 0-10V
  • Environmental Protection: IP68 Fully Submersible
  • Accuracy: 0.5 % FSO
  • Optional IS / EX ia Versions

About Stainless Steel Level Sensor

  • Very Compact Only 27mm Diameter
  • Ideal for Water, Wastewater & Leachate Applications
  • Flush Mounted Ceramic Sensor
  • Fully Submersible & Long-Term Immersion Protected
  • Excellent Long-Term Stability
  • Excellent Linearity
  • Optional Intrinsically Safe and ATEX EX ia Versions
  • Customisation Available

Product Dimension
