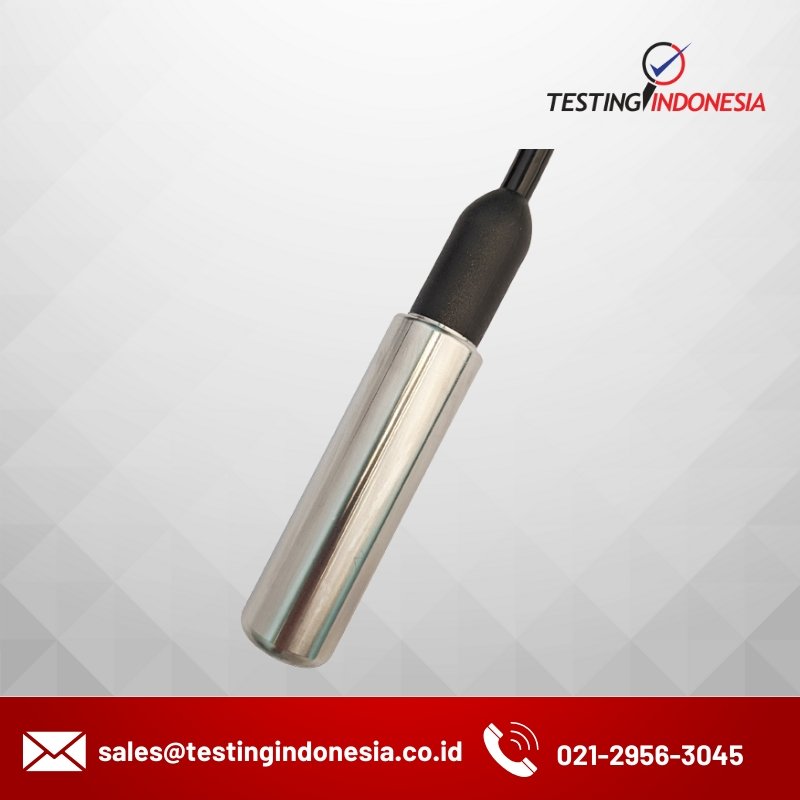

Submersible Temperature Sensor

Category: Tags: ,

Description

The Ta993 submersible temperature sensor comes with a standard temperature range of 0 to +85°C with other calibrated ranges available on request.  It has a compact 25mm diameter and is designed for long-term and permanent submersion in liquids.

Installation couldn’t be easier as the temperature sensor is designed to be suspended by its cable within the liquid that it is measuring.  Plus, thanks to its stainless steel or bronze housing options and various cable material, the Ta993 submersible temperature sensor has excellent media compatibility.

The Ta993 submersible temperature sensor has an integrated amplifier to produce an industry-standard 4-20mA output scale.  What’s more, fast response time is guaranteed by the solid epoxy potting on the body which secures the resistance thermometer in place making sure that the sensor picks up temperature change accurately and quickly.

Rescaling the temperature sensor is easy using the optional ‘User Configuration Interface’.  You simply connect the output wires to the device, interface to the PC/Laptop USB port and use the free software supplied with the unit.

Aplications

  • Water tank temperature measurement
  • Legionnaires prevention systems
  • Tsunami monitoring
  • Harbour seawater monitoring
  • Estuary temperature analysis
  • Environmental monitoring systems
  • Marine biology studies

Technical Specifications

CHARACTERISTICSTa993UNITS
Sensor Technology:PT100 Resistance Thermometer
Output:4 - 20mA / 2-wireanalogue
Supply:Oct-32Vdc
Calibrated Temperature Range Options:
0 to +85°C
0 to +50°C
-10 to +60°C
0 to +35°C
0 to +100*°C
32 to +185°F
0 to +122°F
14 to +140°F
32 to +95°F
Accuracy:<±0.25%/Span Typical
Pressure Rating:Tested to 5 bar for 48 hours, maximum submersion depth 50m
Media Temperature Limits:-30 to +85˚C
Media Wetted Parts:Housing: 316 Stainless Steel or CA104 Marine Bronze
PUR Cable: Raychem-25 Elastomer, PUR
TPE-U Cable: Polyolefin, Epoxy, Polyamide, FKM, TPE-U
FEP Cable: Polyolefin, Epoxy, Polyamide, FKM, FEP
Permissible Media:All fluids compatible with media wetted parts
Electrical Connection:Submersible Cable: PUR, TPE-U or FEP Jacket
Cable Length:Standard lengths: 2, 5, 10, 15, 20, 50m
Optional: any cable length required in 1m increments
Cable length does not affect the performance of the sensor but is limited to 1000m
Environmental Protection:IP68 to 50m / 5bar

Product Dimensions

Wiring Details

WireDesignation
Red+ve supply
Blue-ve supply & 4-20mA output in series
Whiteto case
Greencable screen
