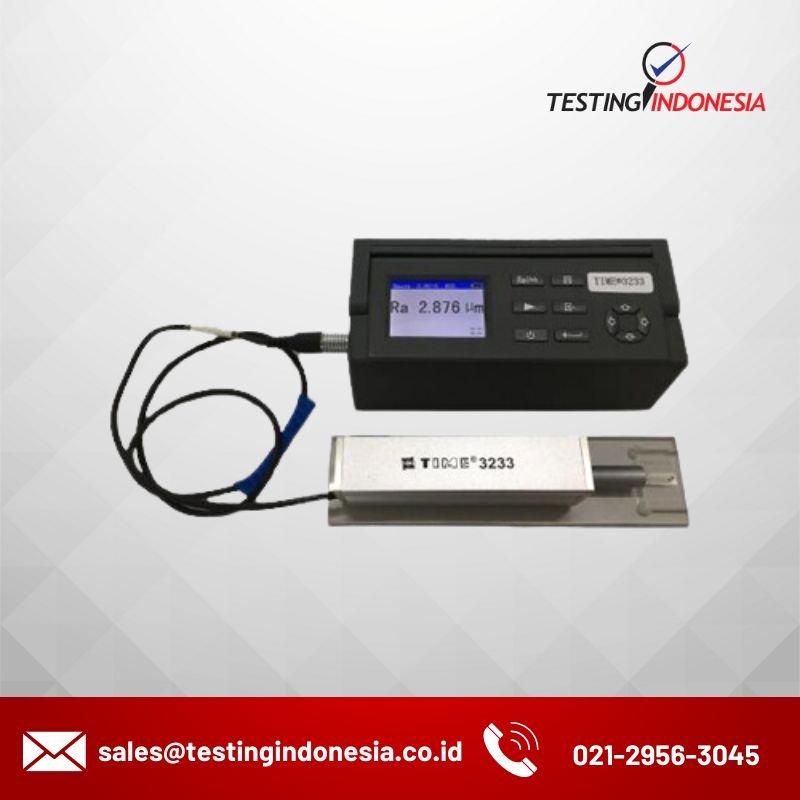

Surface Roughness Tester Profilometer TIME®3233

Surface Roughness Tester Profilometer TIME®3233

TIME® 323X series is advanced high-end surface roughness measuring instruments with wide testing range (±400µm) and high accuracy (tolerance±5%, repeatability 3%).

Category: Tags: ,

Description

TIME® 323X series is advanced high-end surface roughness measuring instruments with wide testing range (±400µm) and high accuracy (tolerance±5%, repeatability 3%). Meanwhile, TIME® 323X surface roughness tester features with skidless/skid measurement, which means it can reach smaller and harder to reach parts than other conventional tools. Up to 55 parameters for roughness, waviness and primary profile are supported. TIME®3233 is the latest portable stylus type surface roughness tester developed by TIME Group Inc. Separated driver makes it flexible to address different specimen. 50mm tracing length can fully test waveness.

Spesification

Assessed profile

R (Roughness), W (Waveness), P (Primary profile)

Measuring range

±400μm, ±25μm

Filtering

RC,PCRC,Gauss,D-P,ISO 13565

Parameters

R: Ra,Rp,Rv,Rt,Rz,Rq,Rsk,Rku,Rc,RS,RSm,Rlo,RHSC,Rpc,Rmr(c),RzJIS,R3y,R3z W: Wa,Wp,Wv,Wt,Wz,Wq,Wsk,Wku,Wc,WS,WSm, Wlo,WHSC,Wpc,Wmr(c),WzJIS P: Pa,Pp,Pv,Pt,Pz,Pq,Psk,Pku,Pc,PS,PSm,Plo,PHSC,Ppc,Pmr(c),PzJIS Rk: Rk,Rpk,Rvk,Mr1,Mr2

Cut-off length

0.08mm,0.25mm,0.8mm,2.5mm,8mm

Max. tracing length

50mm

Analysis graphs

ADC, BAC

Evaluation length

1L-5L

Resolution

0.001μm/50μm；0.016μm/800μm

Tolerance

±5%

Display

LCD

Memory

10 groups of primary data

Data output

RS232,USB

Power supply

Li battery / AC adapter

Dimensions (mm)

409×96×98

Weight (g)

2300
