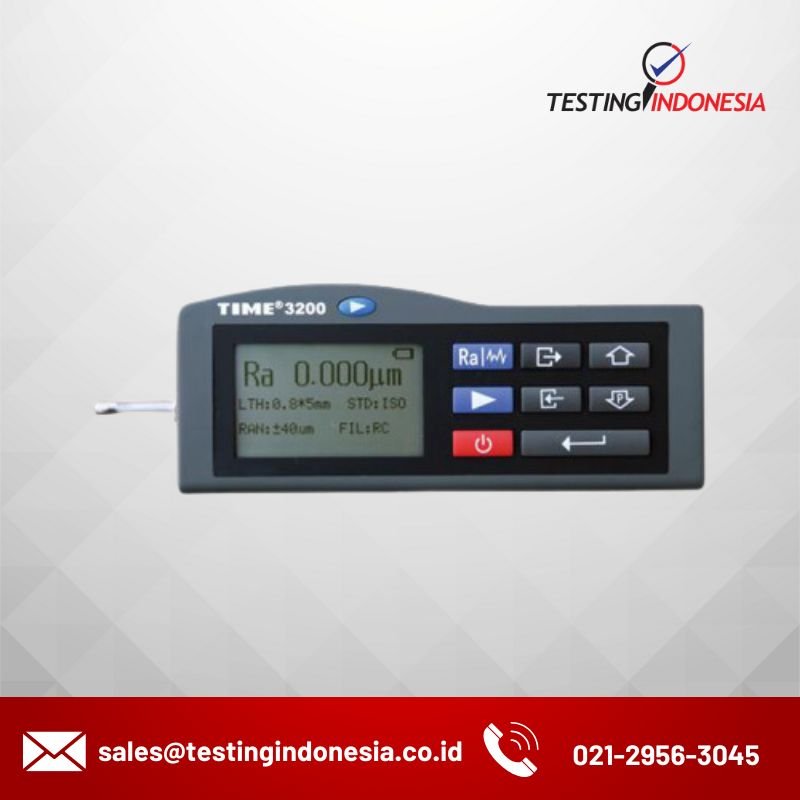

TIME®3200/3202 Surface Roughness Tester (TR200) is a cost-effective roughness measuring equipment which supports a dozen of parameters.
TIME®3200/3202 Surface Roughness Tester (TR200) is a cost-effective roughness measuring equipment which supports a dozen of parameters. It is small and light with better accuracy. TIME®3200/3202 can be equipped with several optional pickup for different applications. Well suited for on-site roughness testing.
| Model | TIME ® 3200 | TIME ® 3202 |
| Roughness parameters | Ra, Rz, Ry, Rq, Rt, Rp, Rmax, Rv,R3z, RS, RSm, RSk, Rmr, | Ra, Rz, Ry, Rq, Rt, Rp, Rmax, Rv, R3z, RS, RSm,RSk, Rmr, Rpc, Rk, Rpk, Rvk, Mr1, Mr2 |
| Assessed profiles | Roughness profile (R) Primary profile (P) | |
| Measuring system | Metric, imperial | |
| Display resolution | 0.001 μ m | |
| Data output | RS232 | |
| Pickup measuring range | ±20μ m, ±40μ m, ±80μ m | |
| Cutoff length (L) | 0.25mm / 0.8mm / 2.5mm/Auto | |
| Evaluation length | 1~5L (selectable) | 1~5L (selectable) |
| Tracing length | 3-7L(selectable) | 3-7L(selectable) |
| Digital filter | RC, PC-RC, Gauss, D-P | |
| Max. tracing length | 17.5mm/0.71inch | |
| Min. tracing length | 1.3mm/0.052inch | |
| Pick-up | Standard pickup TS100, inductive, diamond stylus radius 5μm, angle of stylus 90° | |
| Accuracy | ≤±10% | |
| Repeatability | ≤6% | |
| Power | Li-ion battery rechargeable | |
| Dimensions (mm) | 140×52×48 | |
| Weight (g) | 440 | |
