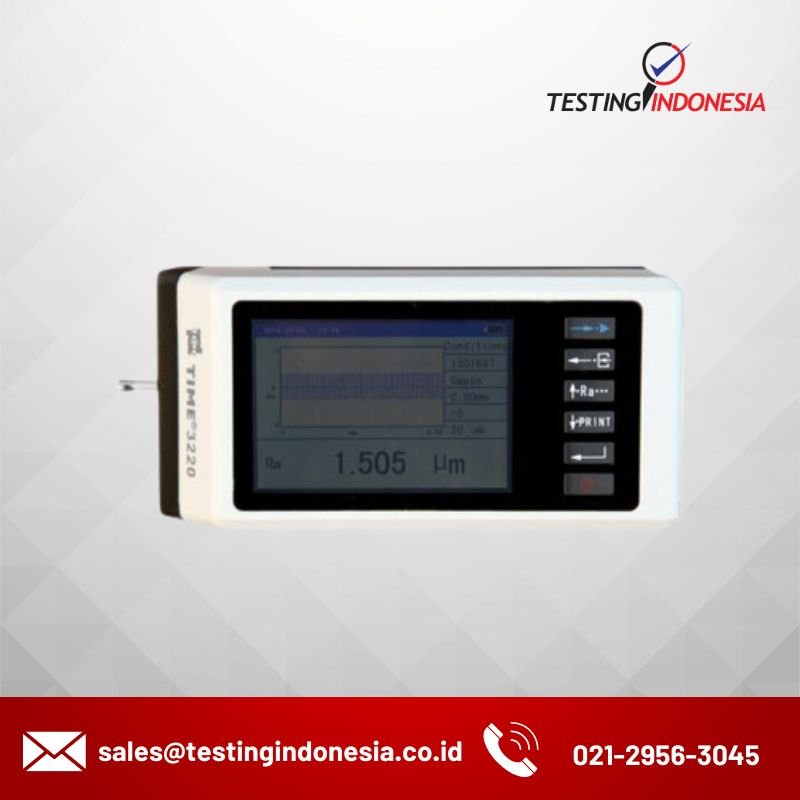

Surface Roughness Tester TIME®3220

Description

TIME 3220 is an advanced stylus surface roughness measuring instrument with integraed drive unit. It supports 45 kinds of roughness parameter measurement with high accuracy and wide testing range.

Features

● Integrated design, easy and convenient to use

● Over dozen measurement parameters:Ra、Rp、Rv、Rt、Rz、Rq、Rsk、Rku、Rc、RPc、RSm、Rmr(c)、tp、Rmr、Rpm、Rz1max、RzJIS、Rmax、Htp、Rδc、R△q、R△a、Pa、Pp、Pv、Pt、Pz、Pq、Psk、Pku、Pc、PSm、Pmr(c)、Pmr、Pz1max、PzJIS、Pδc、P△q、Rk、Rpk、Rvk、Mr1、Mr2、A1、A2

● Touch screen with TFT LCD showing all important data and graphs

● High accuracy inductive sensor probe

● Filtering methods of 2RC, GAUSS

● Compatible with standards of ISO1997, ANSI and JIS2001

● Connected to TIME TA230 printer to print all data and graphs

● RS232 interface and USB interface meeting more needs

● Auto switch off

Standard Delivery
Main unit  1
Standard pickup  1
Standard sample  1
Power adapter  1
Communication cable  1
Protection sleeve  1
TIME certificate  1
Warranty card  1
Instruction manual  1
