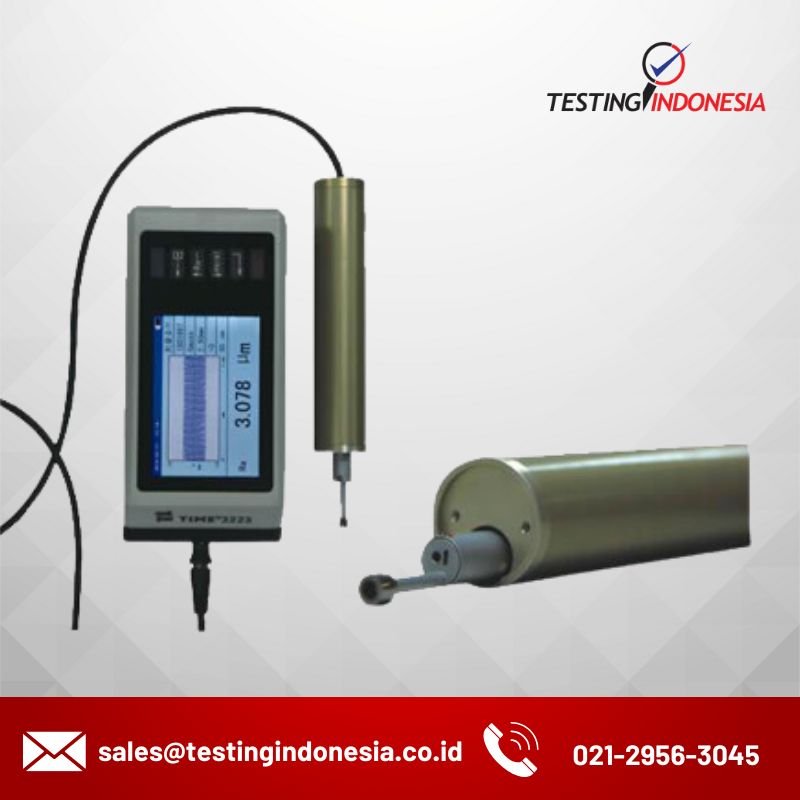

Surface Roughness Tester TIME®3223

TIME 3223 surface measuring tool is featured with round drive unit, which is quitely suitable for measuring the inner wall of pipes.

Description

TIME 3223 surface measuring tool is featured with round drive unit, which is quitely suitable for measuring the inner wall of pipes.

Features

●Separated design, mini driver easy and convenient to use

●Over dozen measurement parameters: Ra, Rp, Rv, Rt, Rz, Rq, Rsk, Rku, Rc, RPc, RSm, Rmr(c), tp, Rmr, Rpm, Rz1max, RzJIS, Rmax, Htp, Rδc, R△q, R△a, Rk, Rpk, Rvk, Mr1, Mr2, A1, A2, Pa, Pp, Pv, Pt, Pz, Pq, Psk, Pku, Pc, PSm, Pmr(c), Pmr, Pz1max, PzJIS, Pδc,P△q

●Touch screen with TFT LCD showing all important parameters and graphs

●High accuracy inductive pickup

●Filtering methods of 2RC, GAUSS

●Compatible with standards of ISO1997, ANSI and JIS2001

●Connected to TIME TA230 printer to print all parameters and graphs

●RS232 interface and USB interface meeting more needs

●Auto or manual switch off



Standard DeliveryOptional Accessory
Main unit1Printer TA230
Standard pickup1Connecting cable
Driver1Dataview
Charger1
Standard sample1
Protection sleeve2
Feeler lever4
TIME certificate1
Warranty card1
Instruction manual1



Spesification

Pick up

Test principle

Inductance type

Measuring range

400 μm

Stylus tip radius

5 μm

Stylus tip material

Diamond

Measuring force

4 mN

Stylus tip angle

90°

Radius of skid curvature

45 mm

Maximum drive range

19 mm

Measuring range and resolution

Measuring range

Resolution

±25 μm

0.001 μm

±200 μm

0.008 μm

Cut-off length

0.08 m, 0.25 mm, 0.8 mm, 2.5 mm

Evaluation length

1L-5L (selectable)

Accuracy

±10%
