Description
This device is used for concrete mixture with no more than 40mm compound pressure to be measured. It has the advantages of accurate measurement value, simple operation, small volume, and convenient molding.

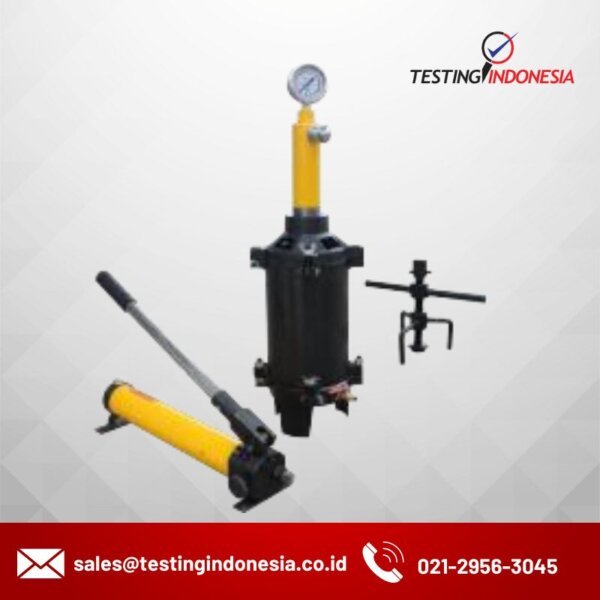

SY-2 Concrete Pressure Secretion Instrument
Spesification
- Model: SY-2
- The maximum range of the pressure gauge(Mpa): 6
- Cylinder inner diameter(mm): 125±0.02mm
- Cylinder body height:200±0.2mm
- Working piston diameter: 125mm
- Screen aperture: 0.335mm (50 mesh)
- Net weight: 20kg
