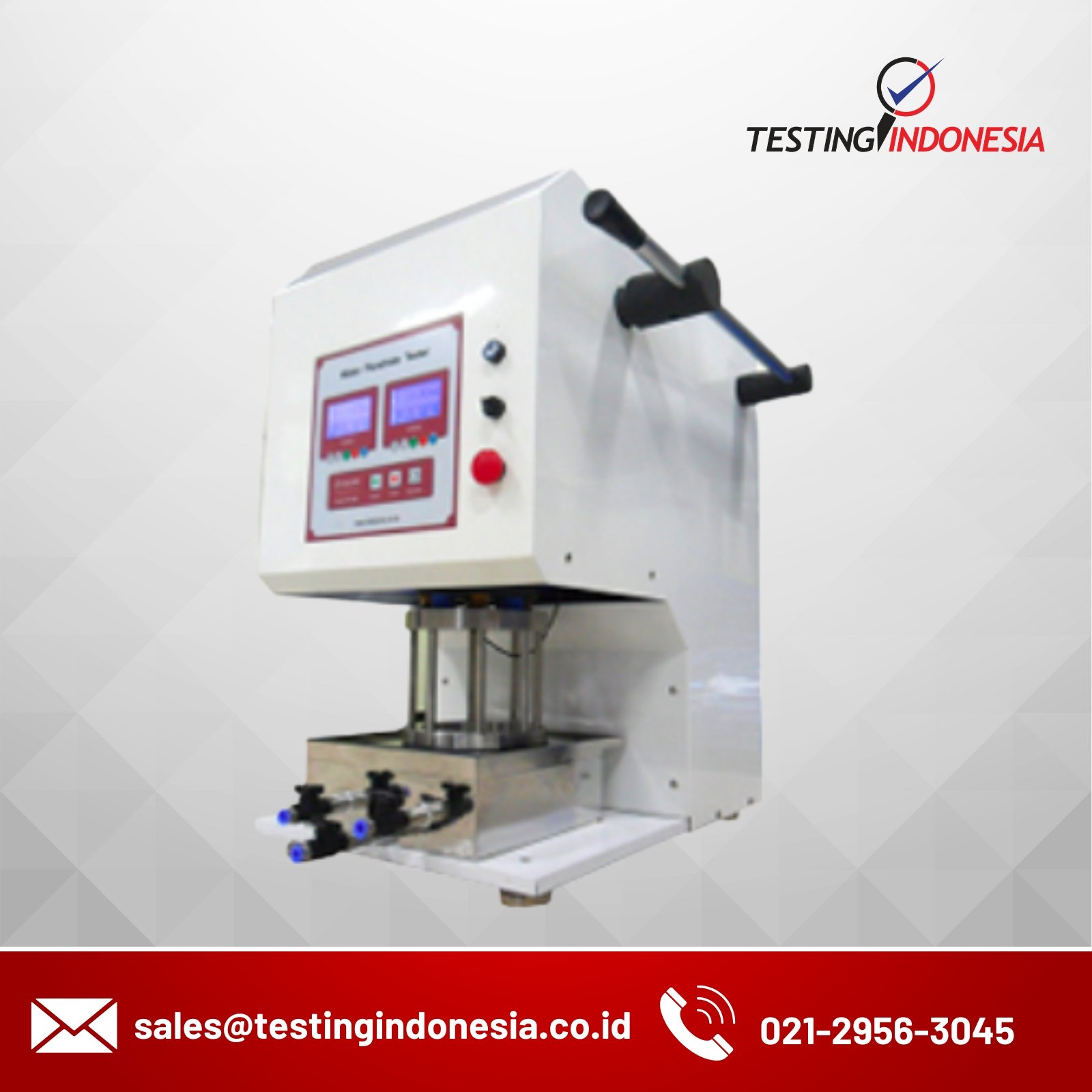

Water Penetrate Tester TO-860


Application Field

Fabric, leather, artifical leather


ISO 811, JIS K 6328

Product Description

This tester measures the hydrostatic pressure of products as fabrics, textiles, leather, etc. There are two methods to test: high range hydrostatic presssure method (6kgf) and low range hydrostatic pressure method (1kgf). This tester was designed based on the low range hydrostatic pressure method. With a constant pressure, water is supplied from the bottom of the specimen.The pressure is measured and tested when certain water droplets are shown.



Water PressureMax 2000mbar (=2000cm H20)
Specimen Clamp100cm2
Clamping Pressure5000 N
MotorCompressor (Max. 6bar)
ForceDigital Type
Water Speed0 – 500mbar/min (Air Servo Vavle)
Safety DeviceEmergency S/W, Sensor of Bursting
Power Source220V 1kw 50/60Hz
StandardISO 811,etc
