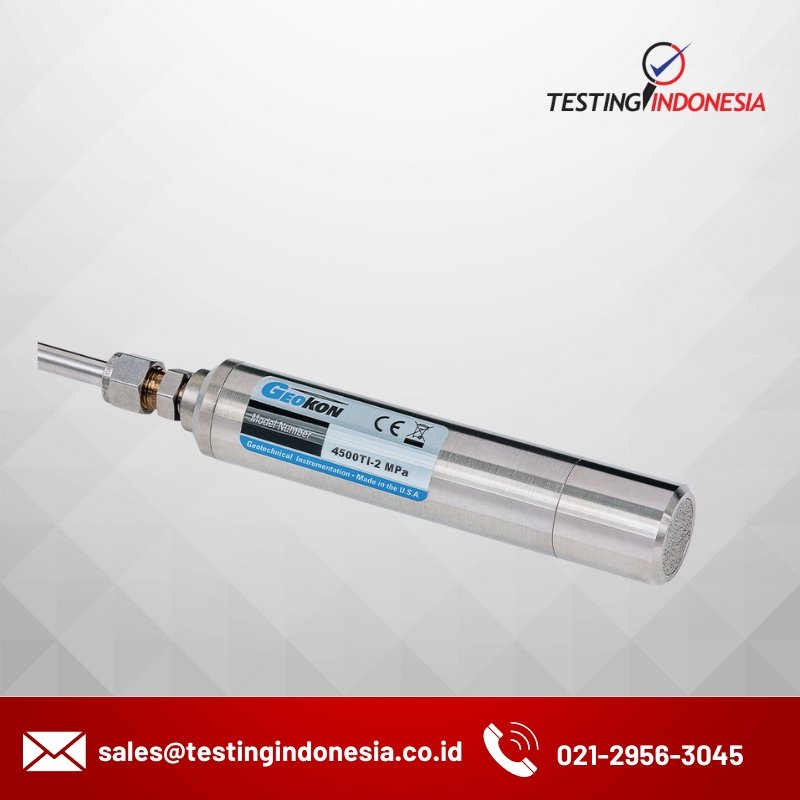

Titanium Piezometer (VW)

Category: Tags: , Brand:

Description

The Model 4500Ti is designed specifically for use in highly corrosive environments such as landfills and leach fields. Also used in critical areas where long-term survivability is essential, for example, as in nuclear waste repositories and aggressive mine tailings. All exposed surfaces are made from titanium.*

Specification

Standard Ranges¹
  • 4500INCO | 70, 170, 350, 700 kPa; 1, 2, 3, 5, 7.5, 10, 20 MPa
  • 4500Ti | 350, 700 kPa; 1, 2, 3, 5, 7.5, 10 MPa
Over Range
  • 1.5 × rated pressure
Resolution
  • 0.025% F.S. (minimum)
Accuracy²
  • ±0.1% F.S.
Linearity
  • <0.5% F.S.
Temperature Range³
  • −20°C to +80°C
Length × Diameter
  • 4500INCO | 133 × 19.1 mm, 133 × 25.4 mm, 194 × 25.4 mm
  • 4500Ti | 125 × 25.4 mm, 168 × 25.4 mm
