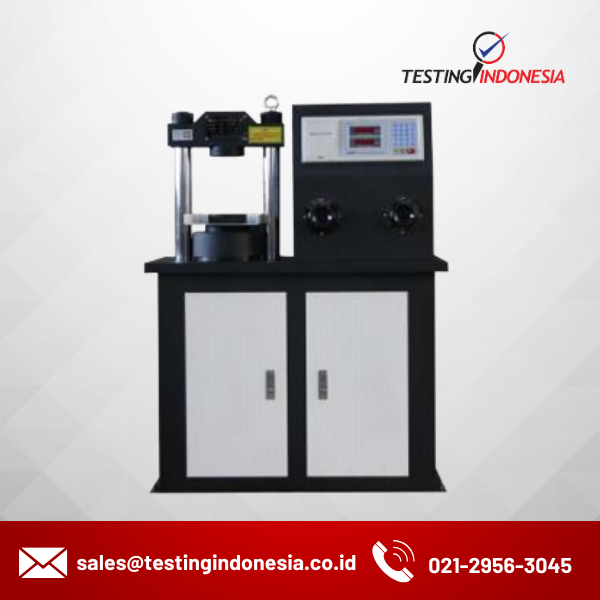

TSY-300 Electro-hydraulic Compression Testing Machine

TSY-300 Electro-hydraulic Compression Testing Machine

Category: Brand:

Description

This product is suitable for the compressive strength test of brick, stone, cement, concrete and other materials, and can also be used for the compressive performance test of othermaterials.

Features

  1. It can automatically adjust the parallelism of the pressure-bearing surface between the test piece and the pressure plate, so that the test piece is evenly stressed;
  2. There is a sealing device between the piston and the oil cylinder to prevent oil leakage;
  3. Equipped with a safety valve, which can overflow when overloaded and play a role of safety protection;
  4. The test data is automatically processed and the test report is printed out.

Specification

Maintechnical parameters and specifications
Maximum test force 300 kN
Indication relative error (accuracy) ±1 %
Hydraulic pump rated pressure 31.5 Mpa
Pressure plate diameter Φ140 mm
Maximum distance between upper and lower platen 190 mm
Piston diameter and maximum stroke Φ140*90 mm
Motor power 0.55 kW
Power supply voltage AC380V ±10%
Dimensions 880 × 430 × 900 mm
Net weight 390 kg
