Description

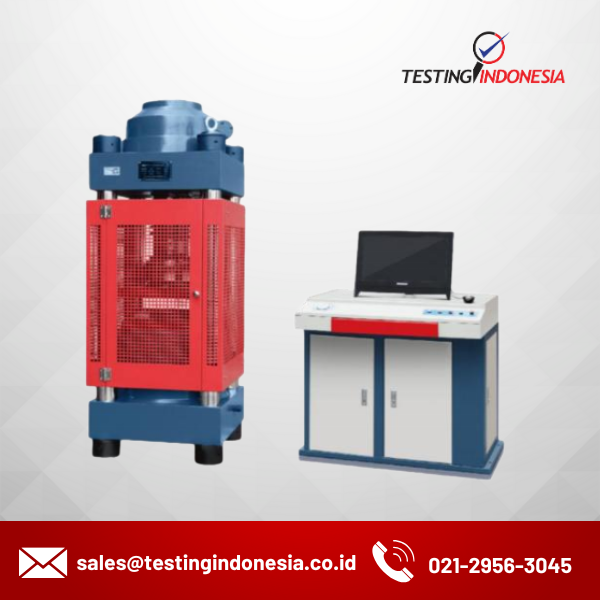

This product is suitable for the compressive strength test of brick, stone, cement, concrete and other materials, and can also be used for the compressive performance test of other materials. The product conforms to ISO, ASTM and other standards

Features

1. The hydraulic pump adopts an axial five-piston ultra-high pressure pump, which works smoothly and has low noise; 2. The control valve adopts high-precision digital micro-flow valve with high control precision; 3. The sensoradopts a pressuresensor, which has good reliability; 4. Adopt the principle of automatic racking to strengthen the control of the loading rate.

Specification

	TSY-2000A	TSY-3000A
Model	TSY-2000A	TSY-3000A
Test force (kN)	2000	3000
Loading rate (MPa)	0.3～1.0, 1.0 or above can be entered manually	0.3～1.0, 1.0 or above can be entered manually
Effective measurement range	10% to 100%	10% to 100%
Accuracy of the load indication	Better than ±1% of indicated value	Better than ±1% of indicated value
Distance between upper and lower platen (mm)	320	320
Pressure plate size (mm)	260 × 260	320 × 320
Piston stroke (mm)	50	50
Piston diameter (mm)	Φ250	Φ310
Oil pressure (MPa)	40	40
Total power (kW)	1.1	1.8
Power supply	AC380V±10%, 50Hz	AC380V±10%, 50Hz
Main unit dimensions (mm)	580 × 500 × 1400	550 × 650 × 1750
Overall dimension of control cabinet (mm)	900 × 700 × 860	900 × 700 × 860
Weight (kg)	900	1300
