Description

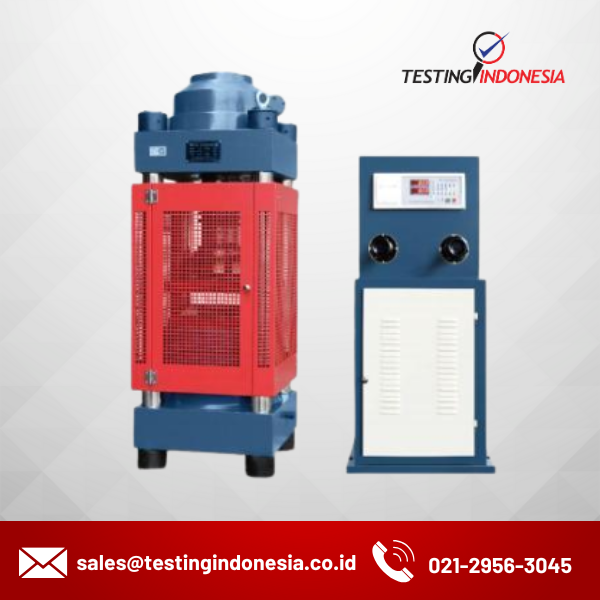

This product is suitable for the compressive strength test of brick, stone, cement, concrete and other materials, and can also be used for the compressive performance test of other materials. The product conforms to ISO, ASTM and other standards.

Features

1. With load digital display function; 2. The maximum load holdfunction; 3. Power-off data protection function; 4. The hydraulic pump is an axial five-piston ultra-high pressure pump, which is directly driven by an electric motor; 5. There is a safety valve on the oil delivery valve, which can overflow when overloaded, which plays a safety role; 6. The hand wheel ofthe oil delivery valve can adjustthe oil intake of the oil cylinder to achieve the required loading rate.

Specification

	Model TSY-2000B	Model TSY-3000B
Test force (kN)	2000	3000
Effective measurement range	10% ~100%	10% ~100%
Accuracy of load indication	Better than ±1% of indicated value	Better than ±1% of indicated value
The distance between the upper and lower platen (mm)	320	330
Pressure plate size (mm)	260 × 260	320 × 320
Piston stroke (mm)	50	50
Piston diameter (mm)	Φ250	Φ310
Oil pressure (MPa)	40	40
Total power (kW)	1.1	1.8
Power supply	AC380V, 50HZ	AC380V, 50HZ
Main unit dimensions (mm)	580 × 500 × 1400	550 × 560 × 1750
Overall dimension of control cabinet (mm)	510 × 540 × 1470	510 × 540 × 1470
Weight (kg)	900	1200
