UK1401 SURFER

Description

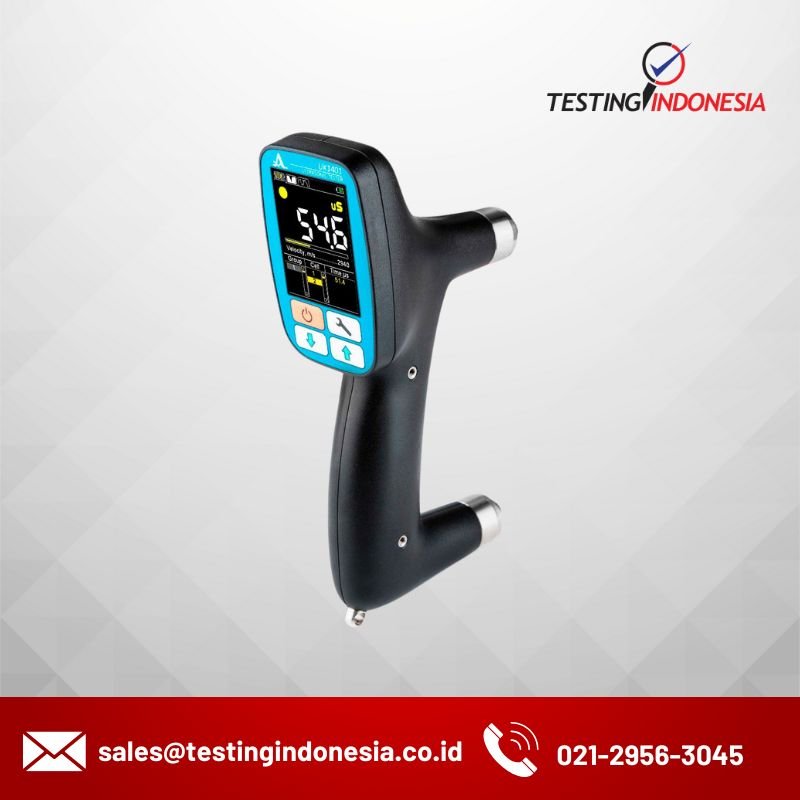

A compact, ergonomic and handheld ultrasonic pulse velocity tester for concrete inspection.

The device is made of light-weight shockproof plastic and has two built-in transducers with dry-point-contact with fixed base (150 mm). Wear resistant tips of the transducers are insensitive to the surface condition. Hence, there is no need to apply coupling gel or to prepare the surface for measuring.

Application

Evaluation of the durability of concrete. The evaluation is based on correlation between time of propagation/velocity of longitudinal ultrasonic waves in concrete. Measurements are performed by the surface scanning with a fixed base.

Search for near-surface flaws in the concrete structures by abnormal decreasing of ultrasound velocity or increasing of the propagation time in the flaw area.

Evaluation of anisotropy in composite materials.

Evaluation of concrete curing during building of poured-in-place concrete method and sliding shuttering.

Evaluation of the load-carrying ability of concrete backbones and posts.

Evaluation of the depth of the outcrop cracks.

Evaluation of porosity and fissuring of the material.

Evaluation of the age of material if its physical properties change with time.

Spesification

Scanning base150 mm
Time measurement range15 – 100 μs
Velocity measurement range1500 – 9990 m/c
Crack deepness measurement range10 – 50 mm
Working frequency50 kHz
Pulse repetition frequency5 – 25 kHz
Quantity of objects in memory4 000
Operating temperature rangefrom -20 to +45 °C
Power three AA Alkaline batteries Operation time100 h
Size199 х 120 х 34 mm
Weight of electronic unit350 g

Standard Packages

• UK1401 – ultrasonic tester
• USB A – Micro B cable
• USB adapter for 220V
• Checking sample
• Case

Download Media

• Operation manual
• Advertising flyer (Metric)
• Advertising flyer (Imperial)
