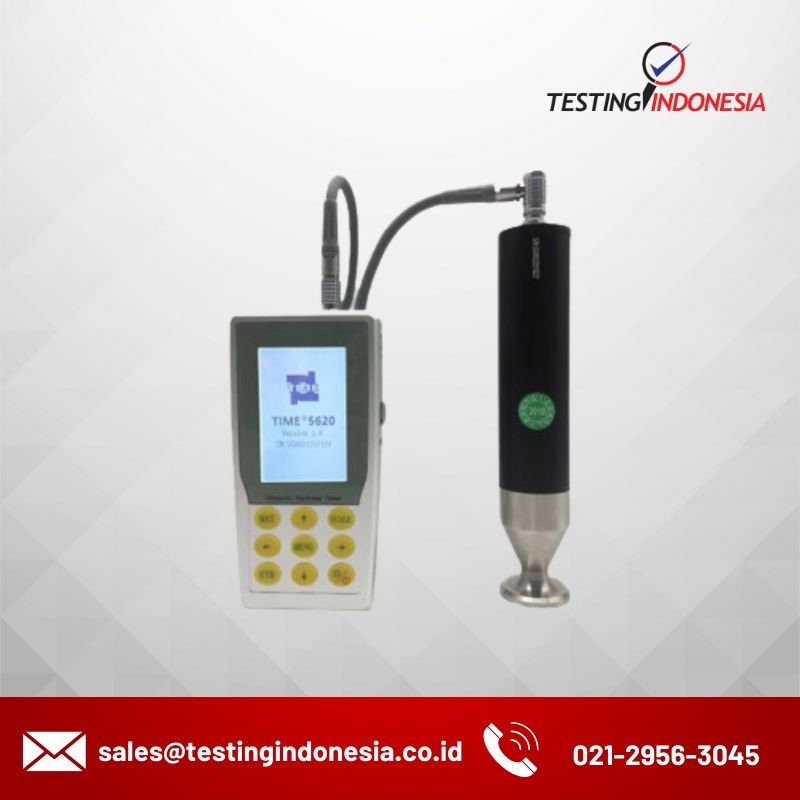

TIME®5620 ultrasonic portable hardness tester adopts Ultrasonic Contact Impedence (UCI) testing method.Compared to traditional hardness testing methods.
TIME®5620 ultrasonic portable hardness tester adopts Ultrasonic Contact Impedence (UCI) testing method. Compared to traditional hardness testing methods, it leaves the least indentation, which can be considered nondestructive. It can test almost any kind of workpieces, small and thin parts as well as large parts.
| Product name | Ultrasonic hardness tester |
| Model | TIME-5620 |
| Code# | #882-121 |
| Loading force | 2Kgf(optional: 1Kgf, 5Kgf, 10Kgf) |
| Measuring range | HB: 85-650;HV 80-1599; HRC 20-70;HRB: |
| 41-100; HRA: 61-85.6 | |
| HS: 34.2-97.3;Mpa: 255-2180N/mm | |
| Measuring accuracy | HV:±3%HV; HRC:±1.5HRC; HB:±3%HB |
| Indenter | 136°vickers diamond indenter |
| Measuring direction | Support 360° |
| Data storage | To save 1000-groups of measuring data and 20-groups of calibration data |
| Hardness scales | HV、HB、HRC、HRA、HRB、MPa |
| Data display | Loading force, testing-times, testing result, average, maximum, minimum, deviation and conversion scale. |
| Hardness indication | LCD display |
| Operating environment | Temperature:-10℃~50℃; humidity: 30%~80%R.H |
| Operating voltage | DC 4.8V |
| Dimensions (mm) | 160x80x31 |
| Weight (g) | 500g（without probe） |
