Description

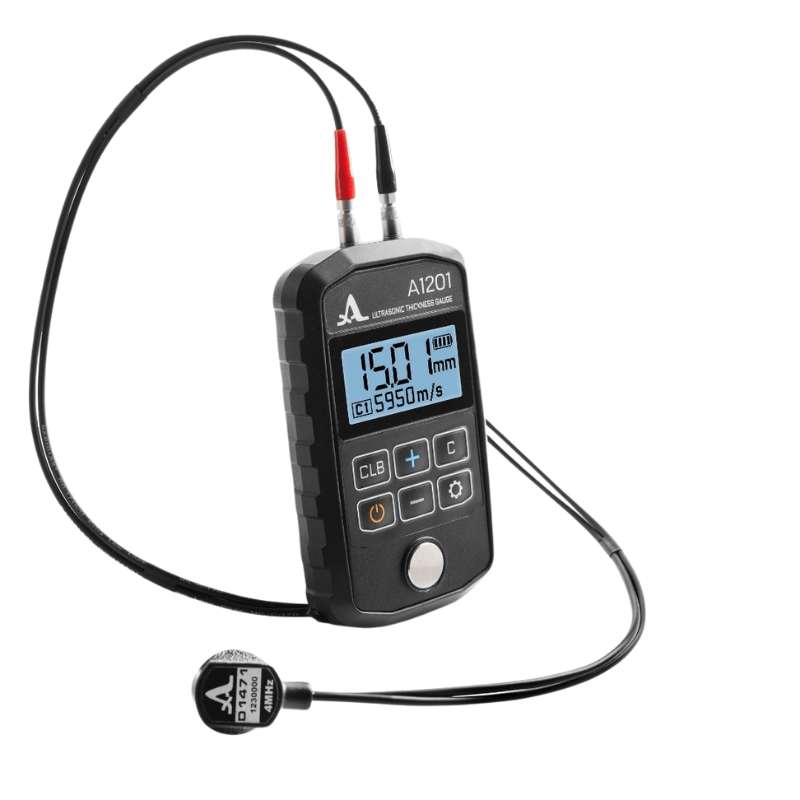

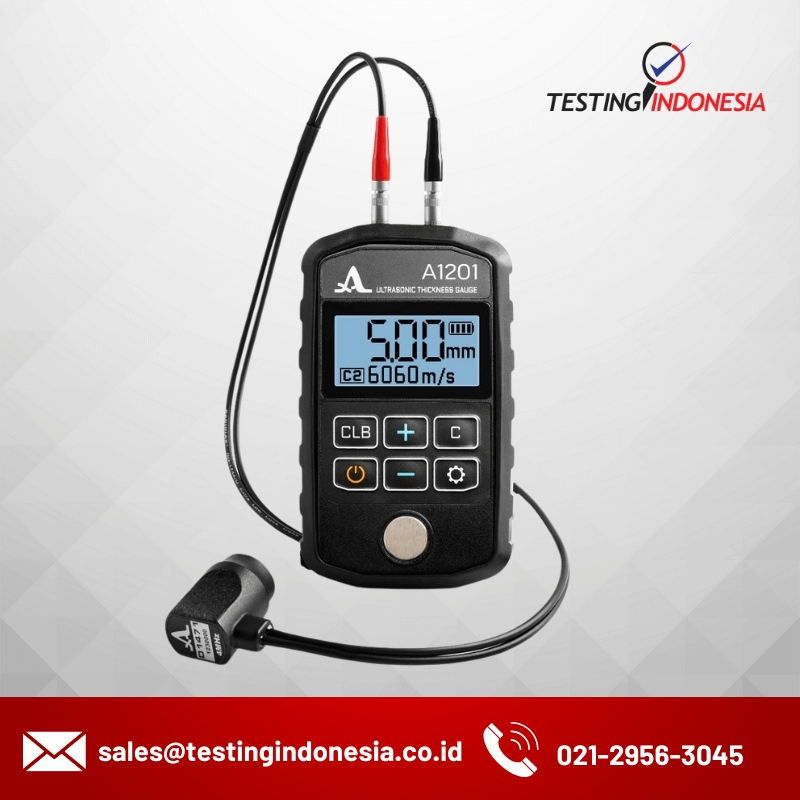

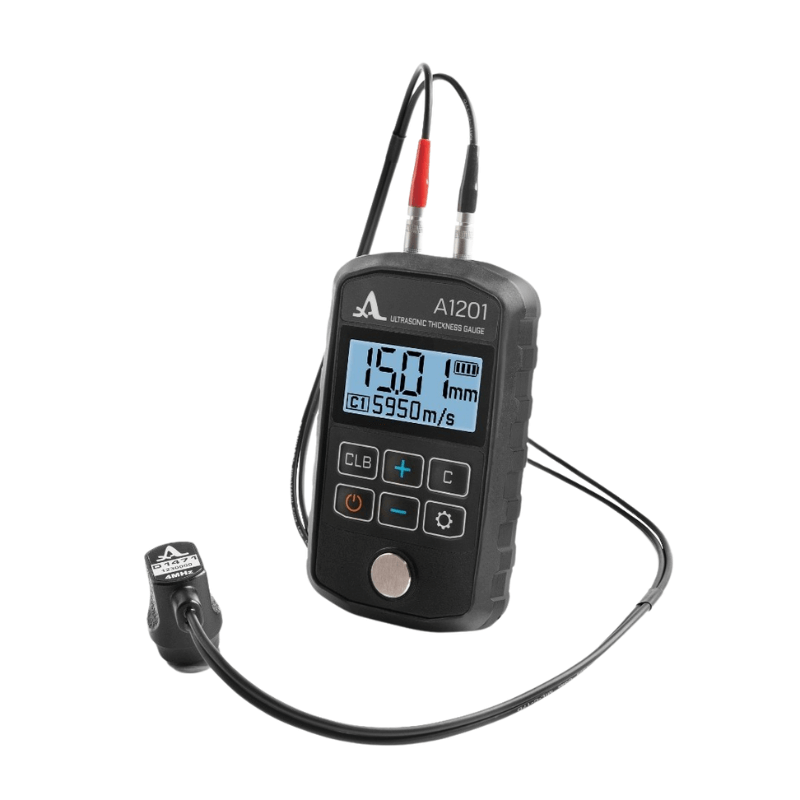

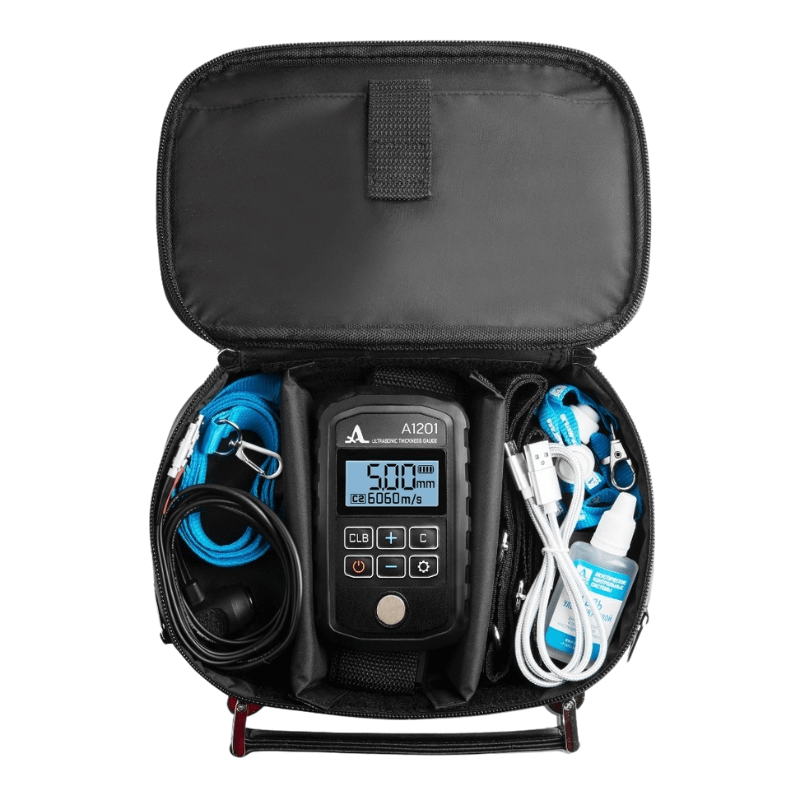

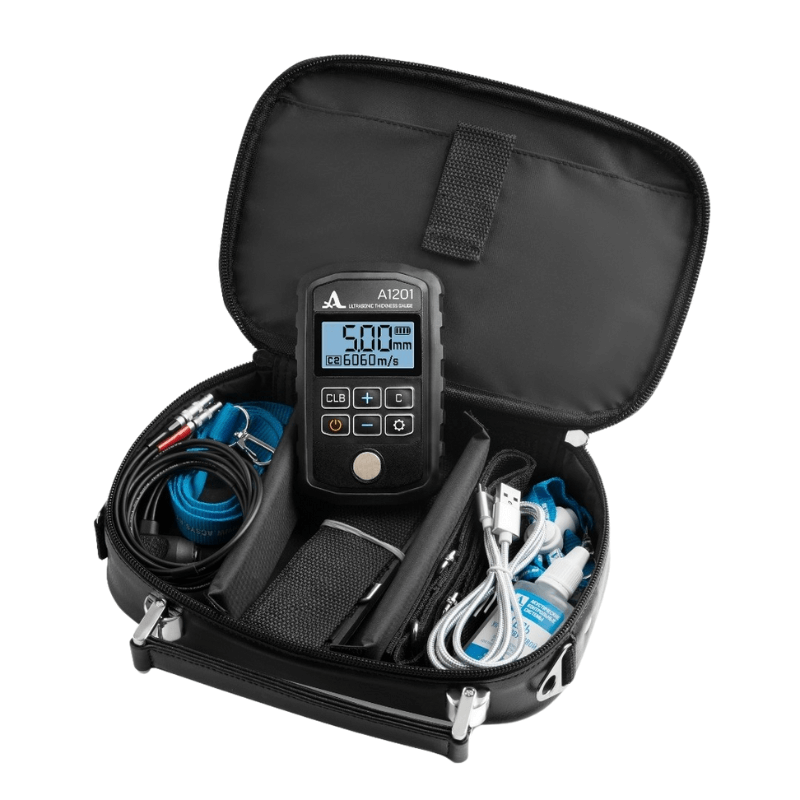

The universal model of the compact ultrasonic thickness gauge offers exceptional ease of setup and use at an affordable price. It is designed for quick and efficient thickness measurements of various steel objects, including small-diameter pipes (from 20 mm), within a 0.7 to 300 mm thickness range.

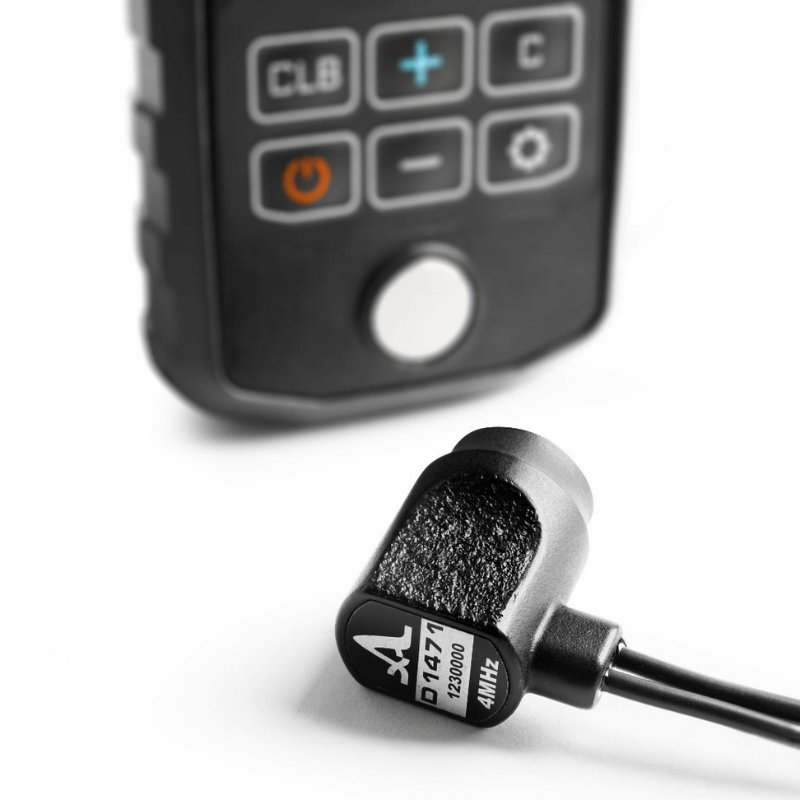

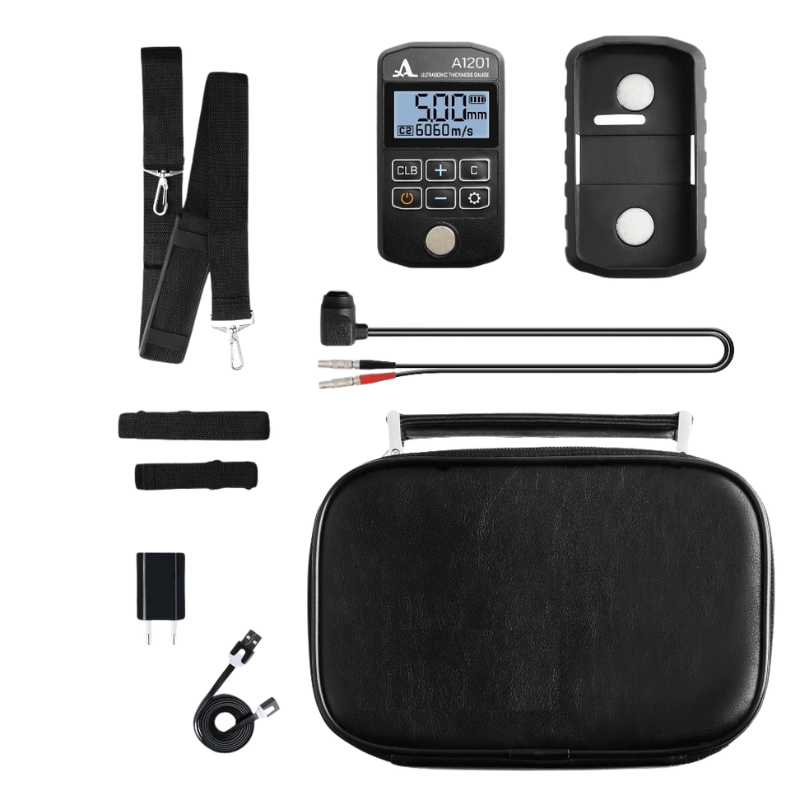

It is ideal for thickness measurements in hard-to-reach places, thanks to its compact separate-integrated transducer with an integrated cable, which is part of the basic package.
It supports operation with the entire range of separate-integrated transducers produced by ACS, with frequencies of 4, 5, and 10 MHz.

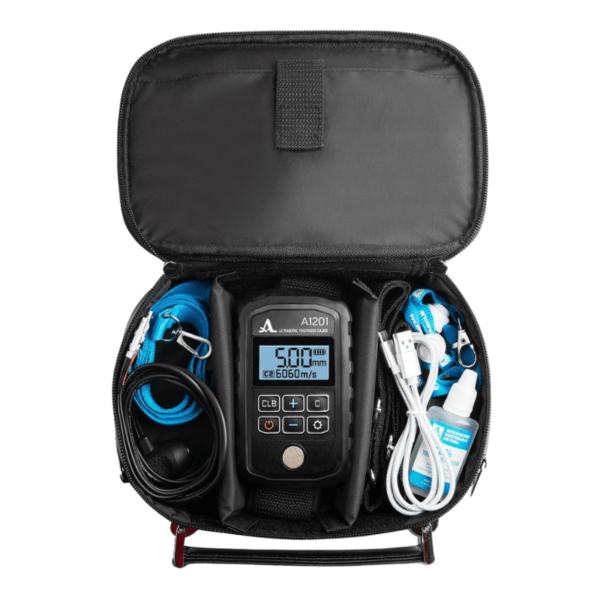

With its small size and weight (only 160 g), it is convenient to use at height and also for storage and transport.
Due to its built-in lithium-polymer battery, the thickness gauge has a long battery life (at least 40 hours without recharging).
The device’s electronic block includes a Bluetooth module for transmitting measurement results (digital and A-scan) to a mobile device running Android OS (app currently in development).
