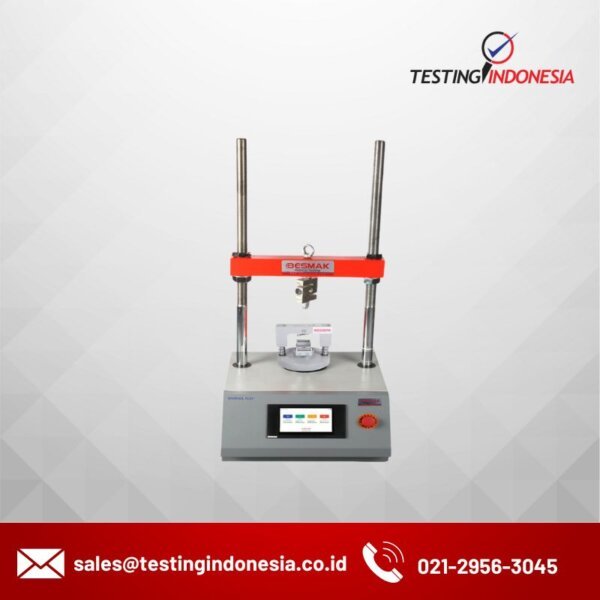

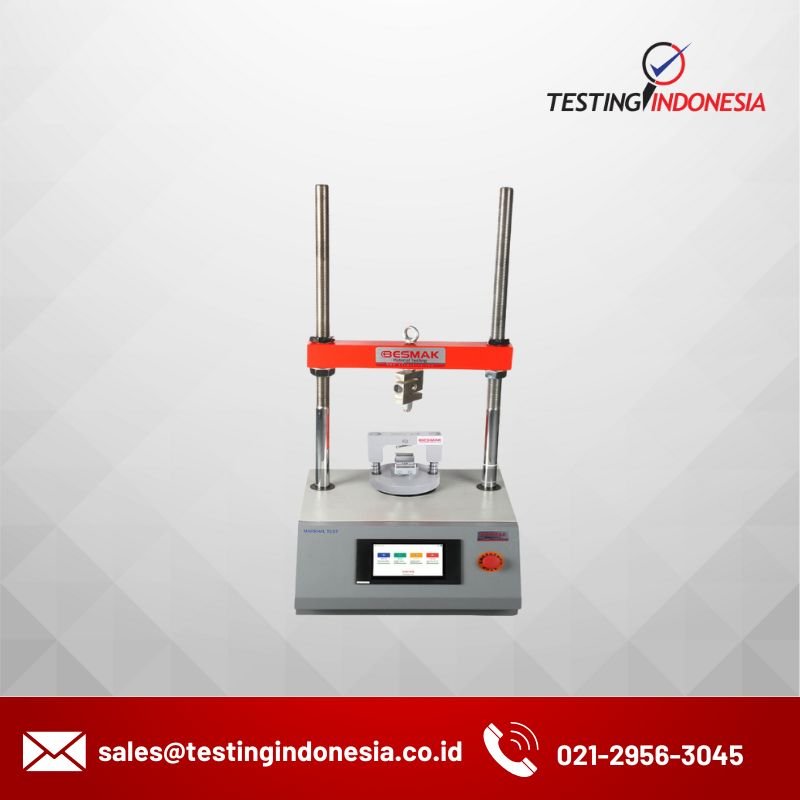

Unimak Series Test Machine, for Cement Compression/Flexural Test

Standards:
✅EN 12697-34 ✅BS 598-107 ✅EN 13108 – ASTM D1559 – ASTM D6927-06

Description

Unimak Series Test Machine can also be used to perform mortar compression/flexural test with a cement compression/flexural apparatus.

Product CodeProduct Name
BMT-50UMKUnimak Test Machine (Marshall ve CBR), 50 kN Capacity
BMT-100UMKUnimak Test Machine (Marshall ve CBR), 100 kN Capacity



Spesification

Frame: The test frame has 2 columns . It is suitable for mortar flexural & bending tests.

Load Measurement: Load, measurement and control with Load Cell that can be applied between 2% to 100% of Capacity as class 1 or better accuracy according to the EN-ISO-7500-1 standard.

Displacement Measurement: the device has a lvdt with measuring length is 25 mm and accuracy as 0.01 mm. for displacement measurement.

Servo electromechanical Drive system: It has precise stepper motor drive mechanism. It can perform precise loads with closed-loop control with mechanic precision gear stepper motor system.

Control Unit: Control unit of machine is “Sematron Touch Series” 10 inch advanced controller, control unit allows constant load increase adjustable between 0.05 kN/Sec – 25kN/Sec and displacement increase adjustable 0,001 mm/min - 60 mm/min, mechanical piston release load automatically at sample break, feasible for simple strength test – ramp loading – holding load constant - sinusoidal waveform with Loading and Unloading Control. 1kHz data acquisition and control capability which allows accuracy in control and reading load, special close loop (PID) control with double loop, automatic gain feature for different sensors, automatic calibration function. The electronic control unit has minimum 2 analogue and 3 digital channels (as optional). Test software to perform fully automatic test and result calculations.

PC Software: Machine comes with a PC software which allows controlling machine with computer, PC software allows same features and menus with display unit.
