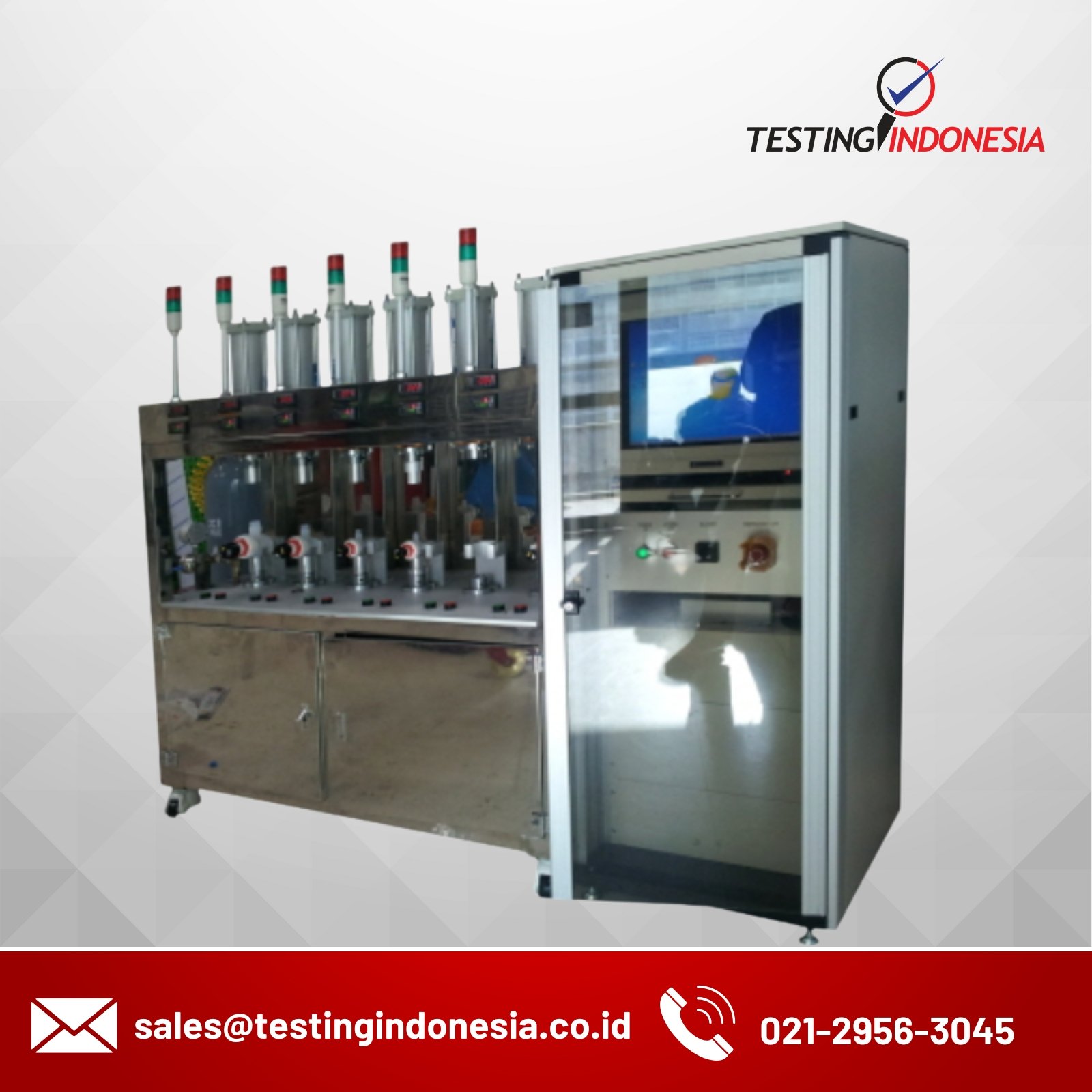

Valve Leak Tester – TO-108VL


  • This tester measurer the alrightness of the valve during the test by applying N2 to the set pressure inside the pneumatic On/Off valve and shutting off.
  • Pressure, and test time can be set
When you first run the equipment (PC), the above screen is displayed on the monitor. Selection Program page button/Selection Calibration page button/program end button are at the top, and at the bottom, there is a test method field for each of the six samples There is a button at the top to enter the test spec for each sample. In the lower part, real time pressure, stabilization time progress, stabilization pressure, real time pressure, Leak pressure amount and test progress time are displayed in order The test result of the test progress can be checked. At the bottom, there are Start Test & Test End button.


TypePressure Manual control
SoftwareValve Leak Tester Only
Computer SystemIndustrial PC, Touch Type Monitor
Main BodySus304, AL
Pressure CapacityMax 10 Bar
Pressure Sensor CapacityMax 30 Bar
Pressure Switch CapacityMax 10 Bar, 4 Digit Display
Regulator Capacity (Air)Max 10 Bar
Regulator Capacity (N2)Max 24 Bar
Demension2220 x 600 x 1480 (W x D x H)
WeigthApprox. 1200 kgf
Power1P 220V
