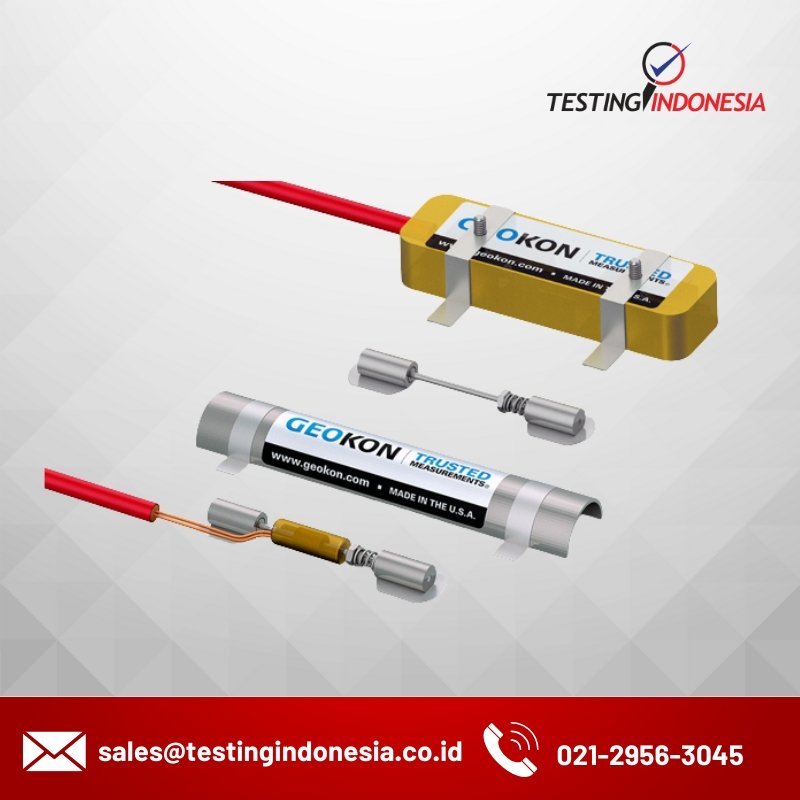

VW Spot Weldable Strain Gage

Description

The Model 4100/4150 Strain Gage has a 51 mm gage length (3000 µε range, 1 µε sensitivity) and is designed to measure strains in steel structures (4100) and on reinforcement bars (4150) where space may be limited.

Features

  • Proven and reliable vibrating-wire technology
  • Attached with Capacitive Discharge Welder
  • Stable long-term output
  • Suitable for very long instrumentation cable
  • Stainless steel construction resists corrosion
  • On-board thermistor

Aplications

  • Bridges
  • Pipelines
  • Buildings
  • Steel piles
  • Reinforcement bars

Specifications

Standard Range3000 µε
Resolution0.4 µε
Accuracy1±0.5% F.S.
Nonlinearity<0.5% F.S.
Temperature Range2−20 °C to +80 °C
Active Gage Length51 mm



1 ±0.5% F.S. with standard batch calibration. ±0.1% F.S. with individual calibration. Accuracy established under laboratory conditions.
2 Other ranges are available on request.
