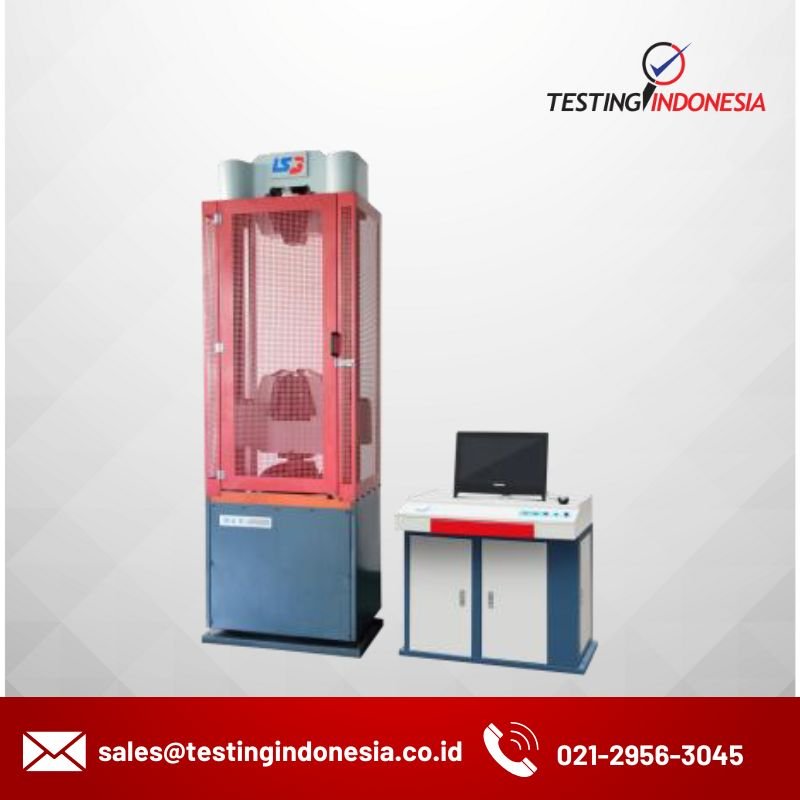

WAW Series Servo Type Steel Strand Special Testing Machine

Category: Tags: , , , , , , , , , , ,

Description

WAW series electro-hydraulic servo steel strand special test machine utamanya dirancang untuk melakukan tensile test pada steel strand. Selain itu, mesin ini juga mampu menjalankan tensile, compression, dan pengujian lainnya pada material logam. Jika dilengkapi dengan fixtures yang sesuai, alat ini juga dapat digunakan untuk melakukan tensile, compression, bending, dan shear tests pada material non-logam.

Features

  1. The machine adopts high precision displacement sensor, accurate data.
  2. Adopt high precision electronic extensometer, accurate and effective measurement of deformation value.
  3. Adopt high-resolution acquisition system, fast data acquisition speed and high accuracy.
  4. Hydraulic control adopts integrated oil servo control system, which can automatically lift, automatically position, automatically set the mark, realize equal force, equal displacement and mixed control.

Spesification

Model Specifications WAW-600G WAW- 1000G
Maximum test force(KN) 600 1000
Measuring range and measuring range(KN) 50-600 100- 1000
Indication relative error ±1% ±1%
Maximum Tensile Test Space(mm) 1050 1050
Maximum compression test space(mm) 950 950
Working piston stroke(mm) 180 180
Upper and lower platen size(mm) Φ223×Φ230 Φ223×Φ230
Distance between two pillars in tension and compression space(mm) 510 510
Maximum rise speed of table plate(mm/min) 60 60
Maximum lifting speed of moving beam(mm/min) 240 240
Total motor power(Kw) 21 21
Main external dimensions(mm) 890×590×2700 890×590×2700
Dimension of force measuring cabinet(mm) 1000×700×850 1000×700×850
Overall weight(kg) 3200 3200
