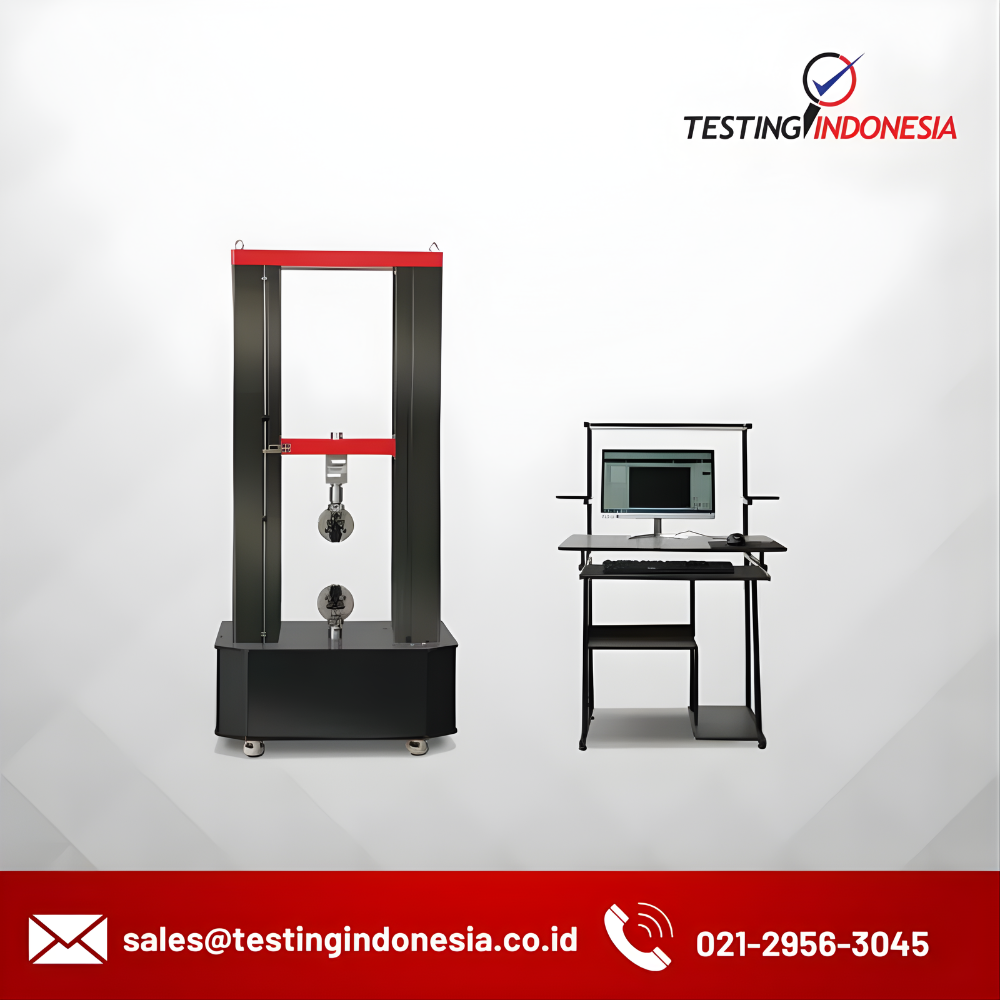

WDW-50 Type Electronic Universal Material Testing Machine

Spesification

1. Maximum test force: 50KN
2. Accuracy grade: 1 grade (can be customized to 0.5 grade on request)
3. Test force measurement range: 1% to 100% FS throughout the whole process without sub-grade
4. Relative error of the test force value: ±1% or less
5. Test force resolution: 1/±300000 of the maximum test force throughout the resolution remains unchanged
6. Deformation measurement range: 0.2%～100%FS
7. Relative error of deformation value: within ±0.5% of the indicated value
8. Deformation resolution: 1/±300000 of the maximum deformation
9. Relative error of displacement value: within ±0.5% of the displayed value
10. Displacement resolution: 0.025μm
11. Force control rate adjustment range: 0.01~5%FS/S
12. Relative error of force-controlled rate: within ±1% of the set value
13. Deformation rate adjustment range: 0.02~5%FS/S
14. Relative error of deformation control rate: within ±1% of the set value
15. Cross-beam speed adjustment range: 0.01～500mm/min
16. Control range of constant force, constant deformation and constant displacement: 0.5%～100%FS
17. Control accuracy of constant force, constant deformation and constant displacement: within ±1% of the set value when the set value is <10%FS; within ±0.1% of the set value when the set value is ≥10%FS
18. Effective tensile space (without fixture): 800mm
19. Effective test width: 400mm
20. Host size: 900 × 500 × 1900 (mm)
21. Power supply: 220V±10%, 750W
22. Host weight: about 230kg
