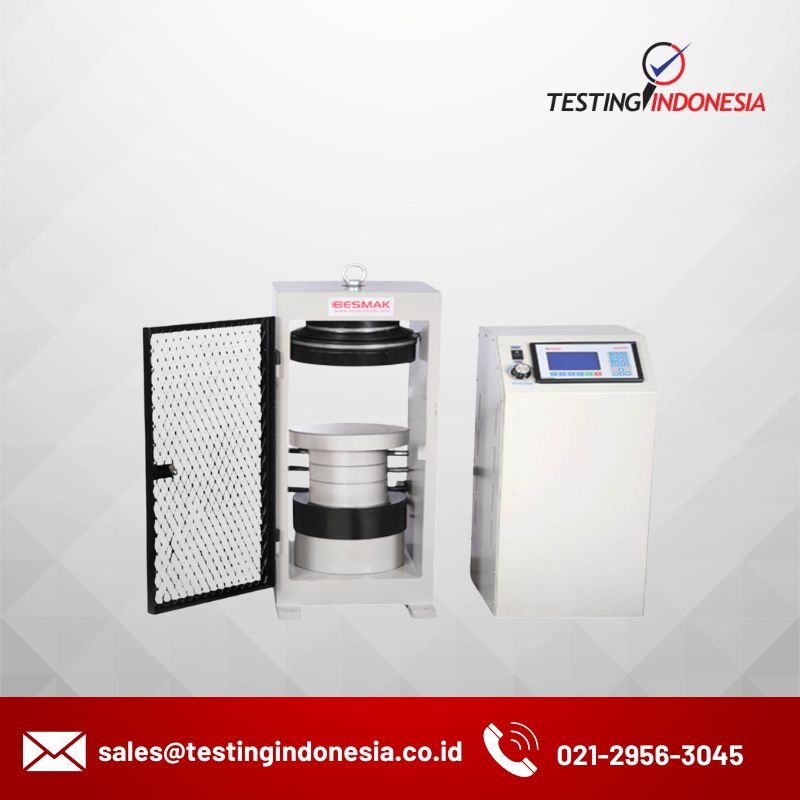

Welded Wall Type Fully Automatic Hydraulic Compression Test Machine with Sematron

Welded Wall Type Fully Automatic Hydraulic Compression Test Machine with Sematron

Standards:
✅TS EN 12390-4 ✅ASTM C39

Categories: , , , Tags: , , , , , , , , , , , , , , , , ,

Description

BESMAK offers advanced solutions for all varieties of bulding materials testing, including standard and static testing. Backed by more than 30 years of experience, BESMAK provides the technology and the specialized expertise labs need to perform accurate, repeatable tests that ensure materials and components meet standards. These complete solutions include:

• Highly stiff, floor-standing servo-hydraulic load frames for a range of force requirements

• Intuitive, versatile and user-friendly software with powerful test design capabilities

• Digital controllers with high channel density, high capacity and superior configurability

• Rugged, high-performance grips and fixtures

A compression test determines behavior of materials under crushing loads. The specimen is compressed and deformation at various loads is recorded. BESMAK can provide and offer a lot of options for users such as 4-Column and Wall Type Frame Structures, Fully and Semi Automatic, Membrane and Touch Screen concrete compression machines.

BESMAK offers a classical membrane type compression machine without touch screen for its price sensitive customers.

BCO-W/S series compression machines comes with

• Rigid welded wall type frame

• Hydraulic unit

• 2 x 50 and 1 x 70 mm distance pieces

• 2 channel electronic controller

• PC software

• Software user manual

Welded Wall Type Compression Test Frames

Product Code BCO-W2000/FR BCO-W3000/FR
Capacity 2000 KN 3000 KN
Piston Stroke 50 mm 50 mm
Lower Platen Dia. 300 mm 300 mm
Upper Platen Dia. 300 mm 300 mm
Thickness of Platens 46 mm 46 mm
Vertical Clearence 755 mm 780 mm
Horizontal Clearance 350 mm 350 mm
Depth Range 390 mm 450 mm
Hardness of Platens 55 HRC 55 HRC
Test Chamber Height 370 mm 400 mm
Weight 740 KG 1280 KG
Dimensions 505x410x1020 mm 500x575x1250 mm



* Contact us for different dimensions and special design frames

* Frames can be sold separately

Ürün Kodu Ürün Adı
BCO-W1000/S Sematron Controlled Wall Type Concrete Compression Machine, 1000kN Capacity
BCO-W1500/S Sematron Controlled Wall Type Concrete Compression Machine, 1500kN Capacity
BCO-W2000/S Sematron Controlled Wall Type Concrete Compression Machine, 2000kN Capacity
BCO-W3000/S Sematron Controlled Wall Type Concrete Compression Machine, 3000kN Capacity



Spesification

  • Available in 2000 kN and 3000 kN
  • Complies to EN 12390-4, ASTM C39 for testing hardened concrete
  • More than 1 compression and bending frame can be connected to the same machine
Frame
  • Rigid load frame in welded construction
  • Suitable for testing 150 x 150 x 150, 200 x 200 x 200 mm cube and 150 x 300, 160 x 320 mm cylinder samples (other dimensions are available upon request)
  • Upper platen spherically seated to allow an inclination up to 3° for homogenous loading
  • Given with corrosion-resistant distance platens for different size samples (30 mm, 50 mm, 70 mm, 80 mm)
  • All transmission surfaces are additionally plane – parallel – treated and fine machined
  • Lower platen marked to allow centering of both cubes and cylinders
  • Safety door switch for secure operations
  • Piston limit switch for secure operations
  • At the end of the test process to start a new test the piston returns to the default position
Load measurement and control
  • Load measurement and control is carried out with a pressure sensor with a sensitivity of class 1 or better according to EN-ISO-7500-1 standard, starting from 10% of the capacity.
Hydraulic unit
  • Advanced hydraulic unit with multi-piston hydraulic pump driven by electrical motor, smooth and high flow rate, fast piston approach, with manifold and pressure limit valve, oil tank, comes with necessary joints
Control Unit and Display
  • The control unit has a membrane keypad and 2 analogue channels.
  • LCD Graphic Display, Computer Connectable, with Concrete Testing Program.
  • Sample, company, laboratory and test information can be entered in the program.
  • Load-Time Stress-Time graphs, test reports and sample reports can be taken.
  • Comes with PC software
