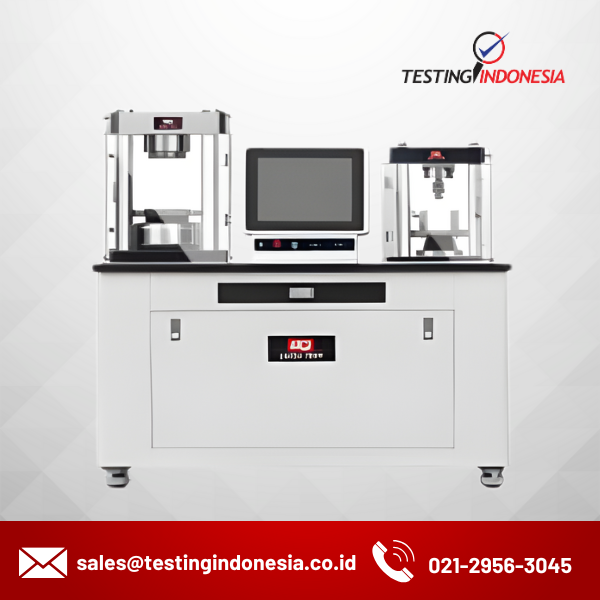

YAW-300-10S Constant Load Cement Flexural & Compressive Testing Machine

YAW-300-10S Constant Load Cement Flexural & Compressive Testing Machine

Category: Brand:

Description

YAW-300-10S Constant Load Cement Flexural and Compressive Testing Machine is a new generation of servo press independently developed and produced by Zhejiang Luda. With strong technology and production capacity, our company was honored to be invited to participate in the preparation of new standards for all-in-one machines. This testing machine is an essential testing instrument for building materials, construction engineering, quality supervision, metrology testing, scientific research institutions and other units.

Features

  1. The whole machine adopts physical and chemical board countertop, and the frame adopts static surface electroplating, which is easy to clean and beautiful.
  2. The anti-bending part adopts electric oil cylinder, which has high precision, stable control, accurate displacement and force value.
  3. The sensor adopts the spoke sensor, which has high precision, stable speed and reciprocation.
  4. Servo motor system, silent throughout, low decibel, oil temperature is not easy to rise, high efficiency and stability, voltage adopts single-phase 220V, strong versatility, high efficiency and energy saving.
  5. The protective cover is made of acrylic transparent material, which is clean and beautiful, and the test process can be observed throughout the process.
  6. The 40mmx40mm cement compression fixture is made of fully galvanized material.

Specification

Compressive strength test Flexural strength test
Maximum test force (kN) 300 Maximum test force (kN) 10
Constant loading rate (kN/s) 0.3~9.9 Constant loading rate (kN/s) 0.05
Upper and lower platen spacing (mm) 185 Section side length (mm) 40
Pressure plate diameter (mm) Φ120 Span between supports (mm) 100
Piston maximum stroke (mm) 90 Piston maximum stroke (mm) 70
Indication relative error (accuracy) ±0.5%
Indication repeatability relative error 0.5%
Return to zero relative error ±0.1%
The relative resolution of the force value display device of the test machine 0.5%
Zero drift ≤±0.1%
Power supply 220V(±10%),1.5kW
Dimensions (mm) 1300×480×1340
Weight(kg) 500
