Description

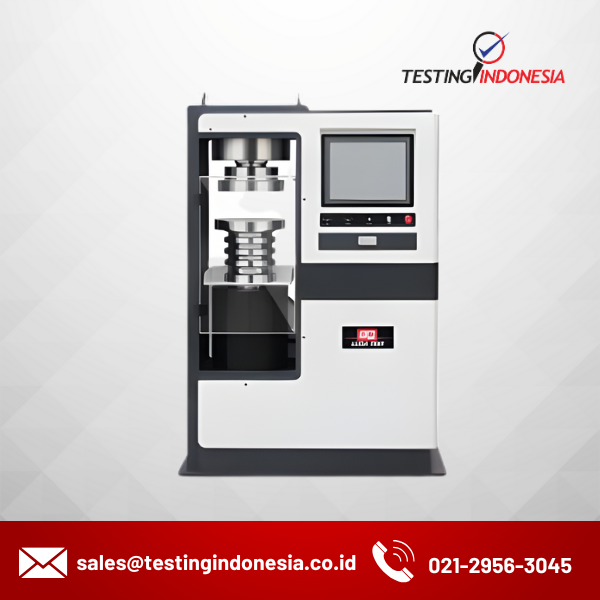

This product is suitable for the compressive strength test of brick, stone, cement, concrete and other materials, and can also be used for the compressive performance test of other materials. The product conforms to ISO, ASTM and other standards

Features

1. The frame adopts the whole machine casting frame structure, which will never deform 2. Imported servo oil source 3. High-precision digital micro valve 4. Imported servo motor oil source, the oil temperature is not too high 5. The sensor uses a high-precision load sensor to ensure data accuracy. The control valve has a force closed-loop control function, which can realize equal load rate loading or equal stress rate loading, with high control precision and good reliability

Specification

Parameter	Model YAW-2000S	Model YAW-3000S
Maximum test force	2000 KN	3000 KN
Measurement accuracy range	5%-100%	5%-100%
Indication accuracy	≤±0.5%	≤±0.5%
Loading rate	0.3 MPa - 1.0 MPa	0.3 MPa - 1.0 MPa
Loading rate accuracy	±5%	±5%
Distance between upper and lower platen	330 mm	330 mm
Upper and lower bearing plate diameter	280*Φ320 mm	280*Φ320 mm
Piston maximum stroke	120 mm	120 mm
Piston diameter	φ250 mm	φ310 mm
Oil maximum pressure	40 MPa	40 MPa
Dimensions	11005101510 mm	12505501510 mm
Net weight	1200 kg	2000 kg
