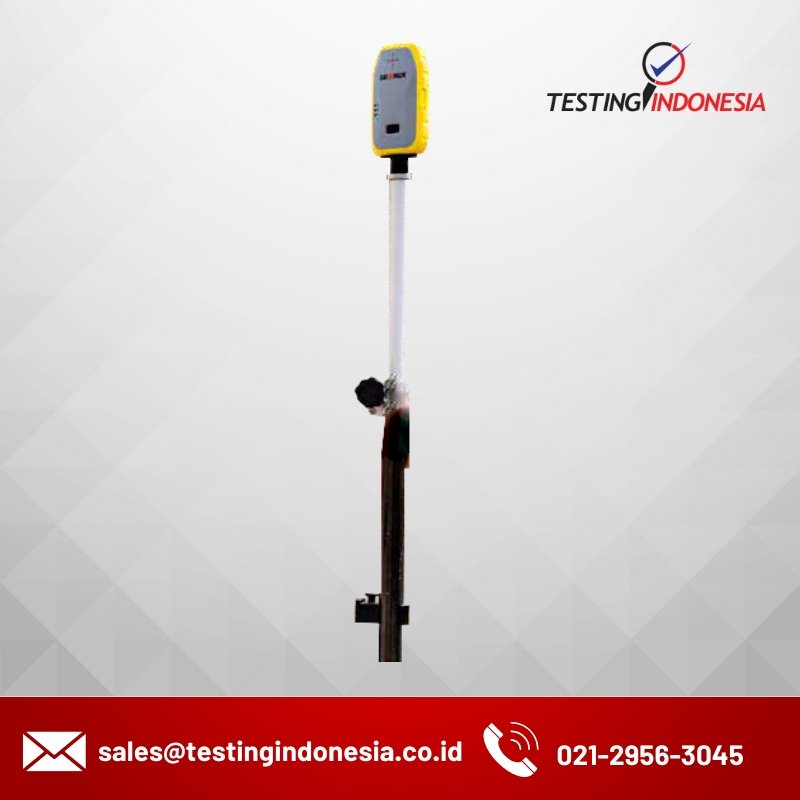

Zenith06 Smart Antenna

Simple and efficient, everything you need.

Description

Survey equipment can be expensive and complex to use. More affordable entry-level devices don’t always meet accuracy standards, which can lead to costly rework, material waste or contractual suing. The Zenith06 entry-level smart antenna, with X-PAD field software, is a solution that offers both simplicity and accuracy while being cost-effective.

Learn fast, start working faster

The simple rover and user-friendly field software eliminate the need for expensive training and experience to produce reliable outcomes. The software has an intuitive workflow, developed side by side with the customer, which allows for quick familiarisation. And if questions arise, real-time assistance from the GeoMax support team is available at any time via TeamViewer. Additionally, you can benefit from a range of tutorials in the X-PAD 365 Virtual Training Academy

Seamless and intuitive workflow

X-PAD software, GeoMax field controllers and the Zenith06 GNSS are carefully chosen and developed to deliver a carefree and efficient workflow. This begins with the accelerated connection process thanks to the innovative and unique QR-iConnect functionality. Forget the times of tedious sensor search and selection by toggling through extensive device lists. Simply scan and go!

Efficient and safe data management

X-PAD 365, the web-based GeoMax cloud platform, was created to address data management and collaboration challenges surveyors and construction professionals meet every day.

Working with the Zenith06, data can be accessed, stored, and shared via the X-PAD 365 File Manager. Your data is always safe, thanks to automatic backups.

Furthermore, the Collaborative Survey and Stakeout feature allows several users to work on the same surveying or stakeout project together, sharing real-time surveyed points and drawings and immediately see the progress.

Convenient use

The Zenith06 is an ideal instrument for a full day’s work in the field. With its compact, lightweight design, the smart antenna is easy to carry and gentle on your body. This makes jobs such as utility surveying and road construction with hundreds of points across a large area much more convenient.

Reliable Partner

Hexagon is known for driving innovation and technological progress. As a part of this group, GeoMax can guarantee its solutions work when you do. The maintenance for X-PAD field software comes at no extra cost and an active X-PERT service will grant access to X-PAD improvements.

Features

No frills
  • Simple RTK rover solution
  • Compact and light design
More benefits
  • Save time and money
  • Perform reliable measurements
  • More flexibility: Choose a GeoMax controller or bring your own device to run X-PAD
Unique Software
  • Intuitive software developed with customer feedback
  • No maintenance cost for field software

Spesification

You need accurate results without having to invest in expensive and complex equipment? GeoMax has a solution: the Zenith06 smart antenna with X-PAD field software. This simple rover and intuitive field software eliminate the need for extensive training to produce reliable outcomes. The software has an intuitive workflow, developed side by side with the customer, which allows for quick familiarisation. The maintenance for X-PAD field software comes at no extra cost and an active X-PERT service will grant access to X-PAD improvements. With its compact, lightweight design, the Zenith06 is easy to carry in the field and gentler on your body.
RECEIVER SPECIFICATIONS
Reliability99.9%
Measurement Engine 184 channels, dual-frequency, multi-constellation
GPS trackingL1 C/A, L2C
GLONASS trackingL1OF, L2OF
Galileo trackingE1 B/C, E5b
BeiDou trackingB1I, B2I
QZSS trackingL1 C/A, L2C
SBAS trackingL1
Positioning rate10 Hz
Initialisation timetyp. 8 sec
RECEIVER ACCURACY AND PERFORMANCE *
RTKHz: 2 cm + 1 ppm  V: 3 cm + 1 ppm
StaticHz: 2 cm + 1 ppm  V: 3 cm + 1 ppm
GNSS InitialisationCold start: 24 sec Reacquisition: 2 sec
COMMUNICATION
4G LTE modemAvailable on Zenius controllers
Bluetooth®BT4.2 LE
Communication portUSB Type C
RTK data protocolsRTCM 3.0, RTCM 3.1, RTCM 3.2,  RTCM 3.3, RTCM MSM
INTERFACES
KeyboardOn/off button
LED status indicatorsBluetooth, RTK, Position, Battery
PHYSICAL SPECIFICATIONS
Dimensions139 mm x 80.6 mm x 30.6 mm
Weight340 g
Operating temp.–40°C to +65°C
Environmental protectionIP67 water- and dustproof
HumidityRarely and slightly condensing. ISO 9022-12-04 (+65°C, 92%, 62h)
VibrationWithstands strong vibration. ISO 9022-36-03-0
ShockWithstands a 1.2 m drop onto a hard surface
POWER SUPPLY
Internal batteryLi-Ion 3.8 V / 6.12 Ah
Operating time> 20 h
  * Measurement precision, accuracy, reliability and time for initialisation are dependent upon various factors including number of satellites, observation time, atmospheric conditions, multipath etc. Figures quoted assume normal to favourable conditions. A full Galileo constellation will further increase measurement performance and accuracy.
