AlphaAir 10
AlphaAir 10 - Image 2

AlphaAir 10

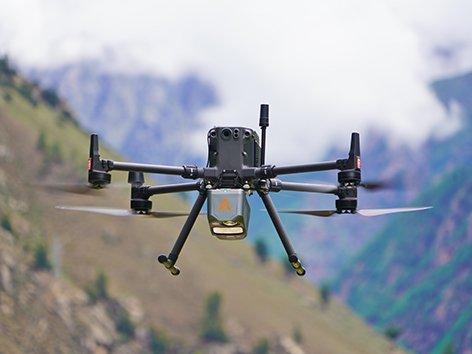

AlphaAir 10 adalah sistem LiDAR+RGB udara profesional yang dirancang untuk memenuhi persyaratan tinggi dalam pemetaan LiDAR UAV dan fotogrametri drone.

Category: Tags: , Brand:

Description

AlphaAir 10 adalah sistem LiDAR+RGB udara profesional yang dirancang untuk memenuhi persyaratan tinggi dalam pemetaan LiDAR UAV dan fotogrametri drone. Solusi canggih ini mengintegrasikan teknologi LiDAR superior dengan pemosisian GNSS yang akurat, orientasi IMU, dan kamera ortofoto full frame profesional. Bersama dengan perangkat lunak pemodelan fusi point cloud dan gambar dari CHCNAV, AA10 menghadirkan akurasi tingkat survei, efisiensi, dan efektivitas biaya dalam akuisisi dan pemrosesan data 3D



Benefits and Performances

High-Precision LiDAR Integration Achieve unmatched accuracy with our high-precision LiDAR technology, offering 5 mm repeated range accuracy and 2-5 cm absolute precision. Enhance your mapping projects with reliable, detailed data even in complex environments.
Long-Range Scanning Capability Extend your survey range with up to 800 m measurements and 500,000 points per second scanning. Cover large areas efficiently and with high detail, maximizing survey productivity.

Enhanced Vegetation Penetration		 Utilize advanced multi-target capabilities with up to 8 target echoes, enabling effective penetration of dense vegetation. Create accurate DEMs and DSMs in challenging environments with improved ground surface acquisition.
High-Resolution Imaging Capture detailed imagery with the integrated 45 MP orthographic camera. Generate high-resolution point clouds and orthomosaic outputs for superior 3D model reconstruction and realistic textures.
Efficient Workflow Integration Streamline your 3D data acquisition with CoPre and CoProcess software, facilitating post-processing and feature extraction. Achieve high-quality results with an easy-to-use, efficient workflow from data collection to final output
Lightweight and Versatile Design Benefit from a compact, lightweight system (1.55 kg) that is easy to mount on various UAVs. Enjoy simplified installation with Alphaport’s one-click connection, enhancing operational flexibility.

Spesification

Laser Scanner
Range  800 m
Scanning rate 500.000 pulses/sec
Field of view 75°
Returns Up to 8

Positioning
GNSS Full GNSS
IMU 500 Hz
Precision max < 5 cm H / < 5 cm V

Imaging
Resolution  45 MP
Focal length 21 mm

Sensors
Camera Optional external camera
