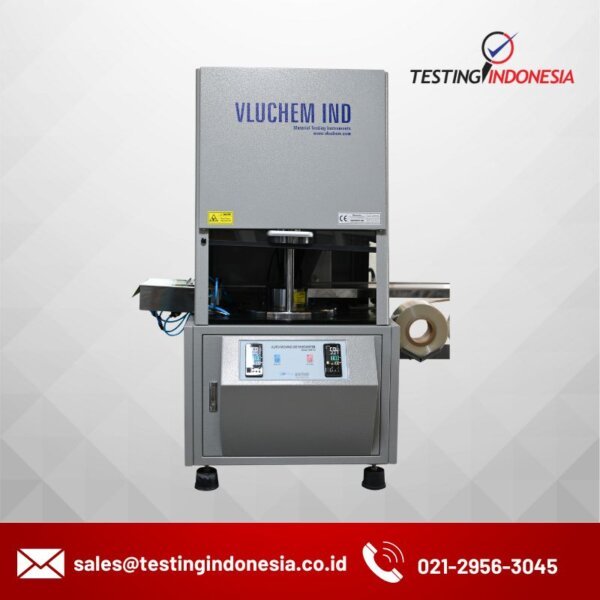

Auto Moving Die Rheometer

Description

The Vluchem’s automatic moving die rheometer (AMR-10) for determining selected vulcanization characteristics of vulcanizable rubber compounds using rotorless sealed torsion meter and measured according to ASTM D 5289, ISO 6502-3 and KS M ISO6502.
MR-10 may be used for quality control in rubber manufacturing processes, for research and development testing of raw-rubber compounded in an evaluation formulation, and for evaluating various raw materials used in preparing rubber compounds.
The instrument is equipped with the highest torque measurement, reliability, along with stiff hardware, superior heater, temperature sensor, temperature controller and Vluchem’s own designed data acquisition device and software.
Designed to be placed on a desk instrument and is supplied with the Vluchem’s own data analysis software for test management, data recording and printing, automated Pass/Fail testing as well as recall processing of historical data, also available an online upload software as an option.

Spesification

Model AMR-10
International Standard ASTM D 5289  ISO 6502 KS M ISO 6502
Motor Induction Motor
Die configuration Biconical, closed die system, sealed
Oscillation frequency 1.67Hz
Oscillation angle 0.5°[Option]1°, 3°, 5° Mechanically adjustable
Protection for operator Temp. shield screen moving Before test chamber closing
Test chamber moving By Pneumatic
Motor Platen operation available by hardware & software
Temperature control available by hardware & software
Temperature range microprocessor controlled RT ~ 220°C
Temp. Sensor Type PT 100 Ω
Torque range 0~ 200 dNm
Calibration Calibration jig
Data Torque[dNm, lbf.in]  Temperature [°C] MH, ML Ts1, Ts2, Tc10(N), Tc50(N), Tc90(N) Data excel export function,   Trend graphs  Tolerance limits by time and torque   Average, S-Dev
Pneumatics min 4.5 bar/60 Psi
Electrical 200~230V, 3A, single phase, 50Hz/60Hz
Emergency Button
DimensionW1200 X D685 X H1200 mm
Weight 180 kgs  
Linear Automation Feeding Device AMR-10 [5 samples]
