Description
Model Name : TO-220

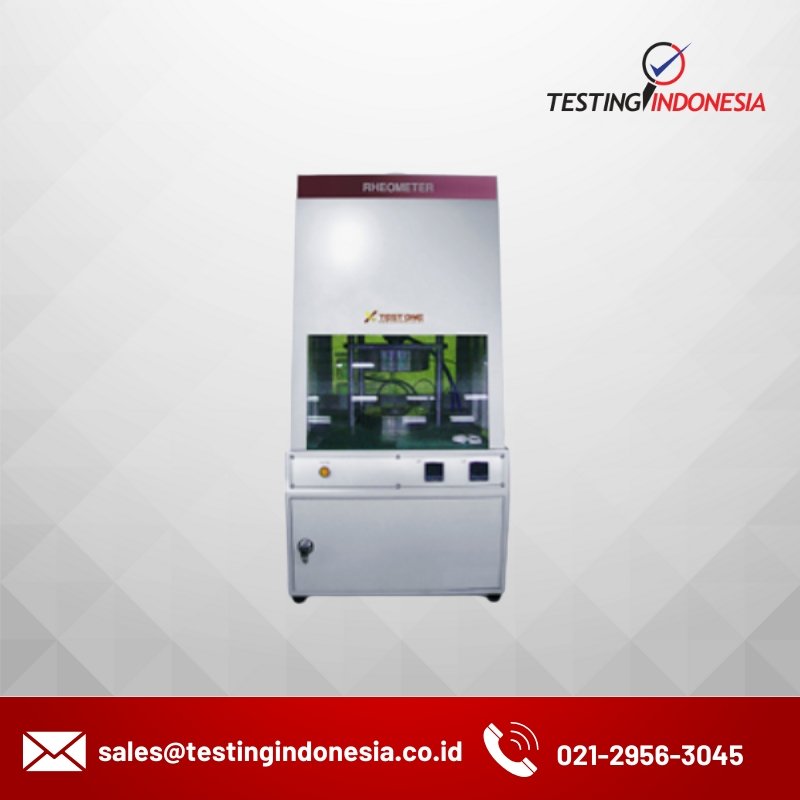

Rheometer
Features
Application Field Rubber Standard ISO 289, ASTM D 1646, KS M 6518, JIS K 6300 Product Description- This tester is a device that measure the degree of vulcanization of rubber. The degree of vulcanization of rubber is important properties in selection, mixing, and etc. of vulcanization chemicals. By adopting of the MDR system, this tester can get more accurate rate of vulcanization and degree of vulcanization.
- By using proprietary software, it is easy to manage graph and data.
Spesification
| Model | TO-220 |
| Movement | Geared Motor Operation |
| Temp. Range | Ambient 10~200 °C |
| Temp. Control | Digital P.I.D Control |
| Temp. Probe | PT 100 Ω |
| Compressed Air | 4 kg/cm³ (4.1 bar, 60 psi) |
| Sample Tray | Rotation Table : 28 EA |
| Dimensions | Approx. 1,240 x 630 x 1,000 mm |
| Power | 220V 60Hz |
| Electrical power | 1.4 kW |
| Weight | Approx. 120kg |
