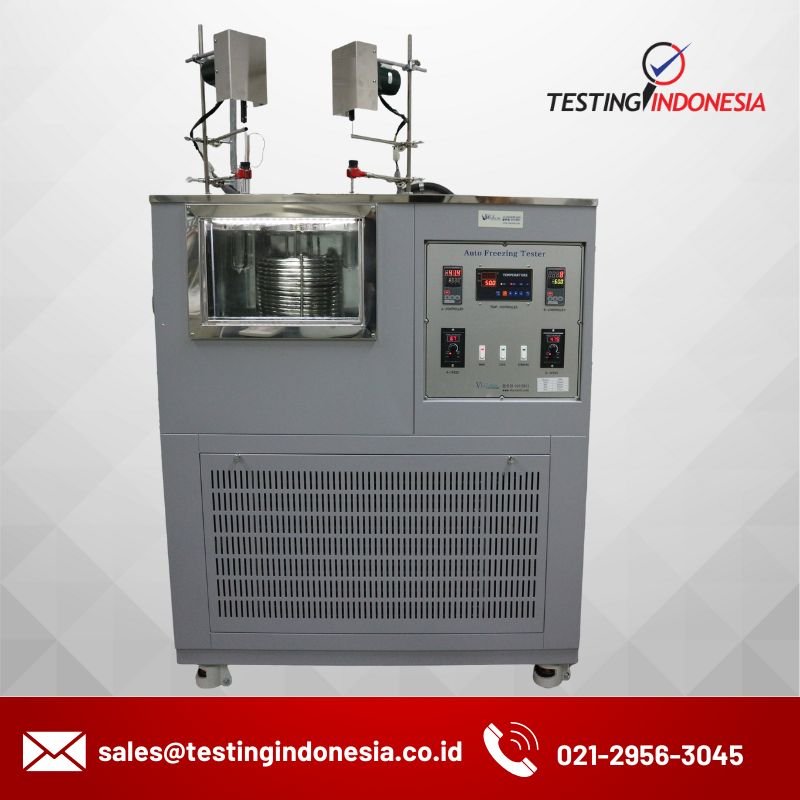

Automatic Freezing Point Test Chamber

Description

This test method describes to measure the freezing point of antifreeze by rapidly decreasing the temperature from room temperature to -60°C using ethanol alcohol.

2 samples are measured simultaneously.
The following measurements may be taken from the curve of freezing versus time.

Temperature of antifreeze point

Start time of the antifreeze freezing point

Spesification

Power 220V, 50/60 HZ, 5KW
Motor speed 60 ~ 80 rpm
                            Coolant Circulator
Temp. Range - 60oC ~ room temperature
Temp. Accuracy ± 2°C
Temp. Prove Pt 100 Ω
Data report Freeze point, Time, temperature, Data files convert to excel files.
Dimension   W615 X D800 X H1700 mm
Weight    90 kgs       
application windscreen wash liquid for autovehicles
