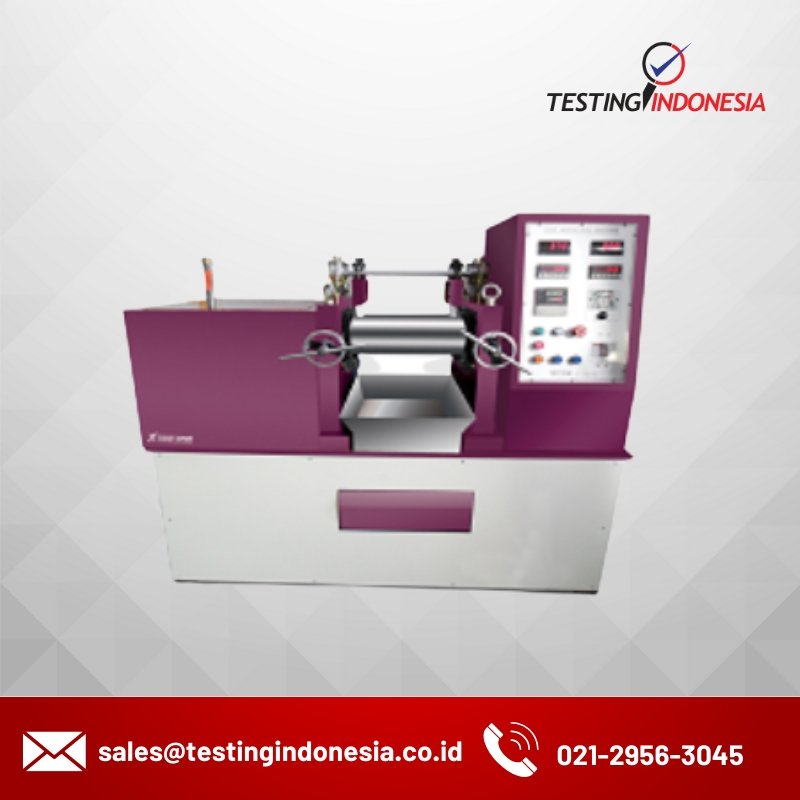

Mixing Roll Machine

Description

Model Name : TO-270

Features

Application Field
Rubber, Plastic, and a kind of compound

Product Description

  • This tester is a product that create specimens of sheet status by mixing various plastics, compound, and rubber. The surface of roller smooth and durable, because the surface was polished after the process of high frequency induction heat treatment, hard chromium plating.
  • By using heating system of silicone oil as a transfer, the temperature difference of roller was reduced, and it was equipped with high precision.
  • BY adopting various safety devices of reverse acting system and backflow prevention system, safety of the user is considered.
  • Air Cooling Type / Water Cooling Type (option)
  • Oil Circulation / Chiller (Option)

Spesification



Body : MIXING ROLLa) Roll Size : Ø150 x 350mm(6inchx14inch
b)Roll Material : S-45C High-frequency heating of the hard-chrome gilting
c)Hardness of over 55 Rockwell
d)Roll interval digital type
e)Roll Gap Control : Digital Type (0.1 ~ 10mm adjustable)
f)Attached roll safety pad
Heating SystemElectricity Heating System
a)Temp. Control : Digital  T.P.R Control
b)Temperature : Ambient 200 °C
c)Temp. Accuracy : ± 3 at 200 °C
Rotational Ratioa)Rotational Speed : 0~40 RPM
b)Chain-driving System
c)Speed Control : Digital Type
Motor / Electronic Devicea)Motor : 10HP with Cycloid Gear
b)Moment-safety Device : Foot on/off (reverse acting Type)
c)Safety device / Upper Handling device
Electric SourceAC 380V, 3P, 60Hz
DimensionsApprox. 1,700 x 800 x 1,600 mm
