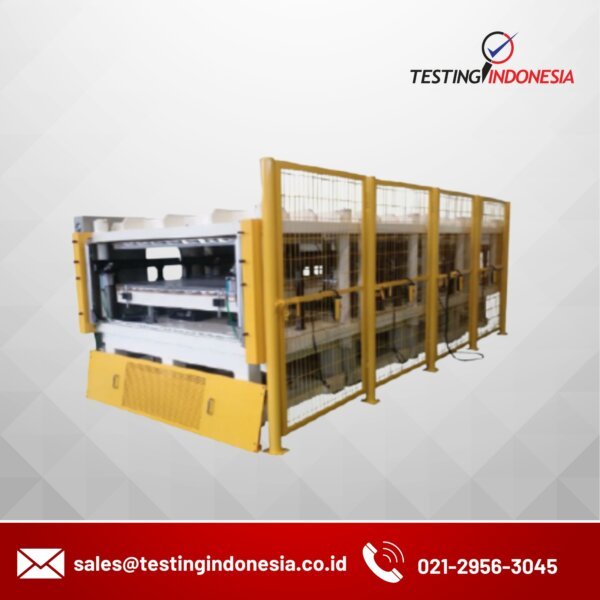

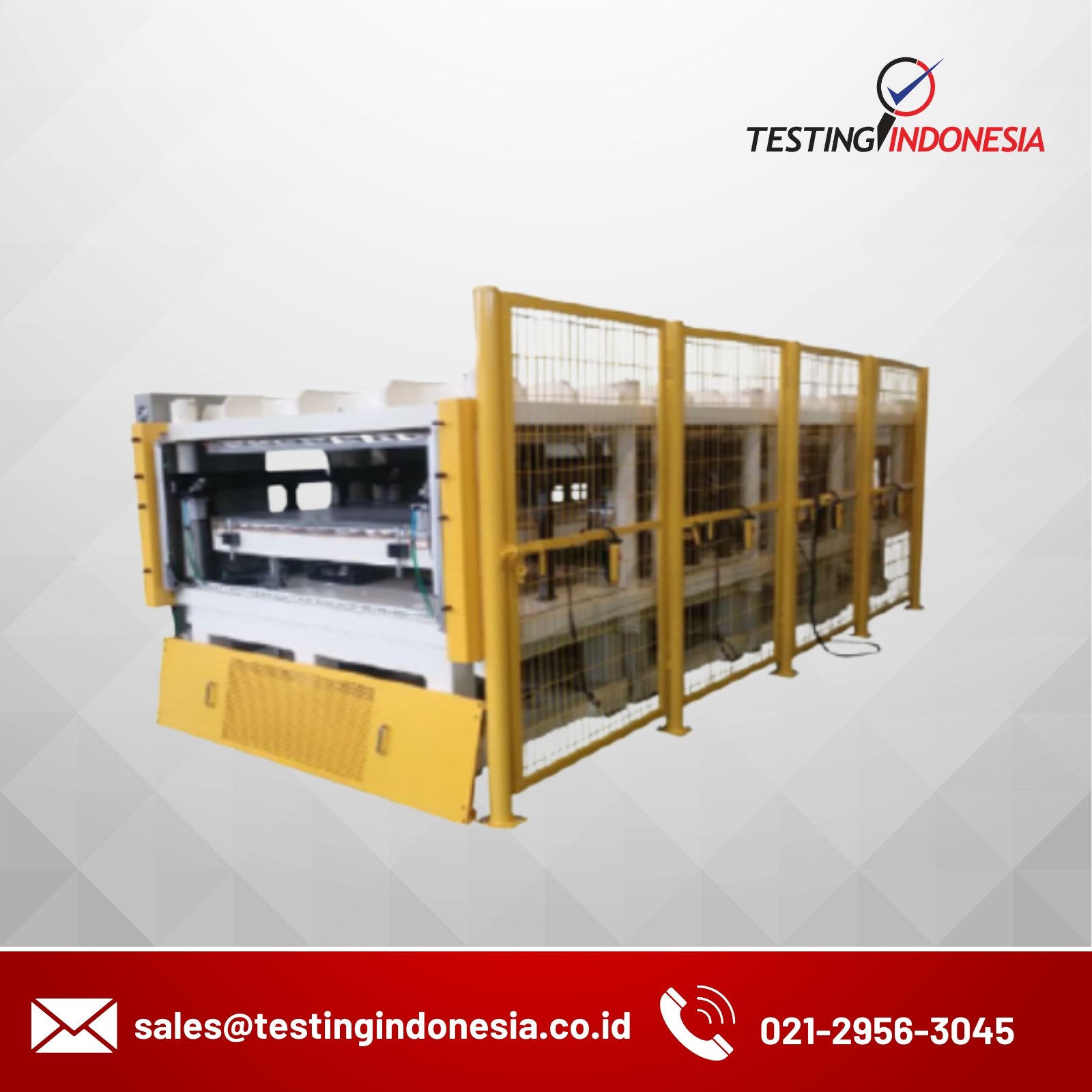

CFRP Multistep Hot Press – TO-MP-4


  • The temperature and pressure of the testing machine Press at intervals of 4 to Multi Step Hot Press. It is possible to set the time arbitrarily also sample is equipped with an automatic Belt conveyor for driving in machine.
  • The temperature of each segment using only S/W, pressure and time can be set for each section, and it analyze the progress data.
  • The accuracy of the available pressure is increased by the Hydraulic Servo Valve also heating plate is to minimize temperature variation for consists of a Multi zone control system.


Pressure Capacity50 tonf
Pressure Zone4 Step Zone
Heating Plate1500 x 1200 mm
Tem. RangeRT ~ 450ºC
Tem. ControlMulti Zone Control
Tem. Accuracy± 5 at 450ºC
Specimen driving SystemAuto
Feeding rate5 sec(Section)
MotorHydraulic Pump
Cooling SystemWater Cooling System
Main Power380 v 3 P
WeightAbout 8 ton
