Description
BESMAK offers advanced solutions for all varieties of bulding materials testing, including standard and static testing. Backed by more than 30 years of experience, BESMAK provides the technology and the specialized expertise labs need to perform accurate, repeatable tests that ensure materials and components meet standards. These complete solutions include:
• Highly stiff, floor-standing servo-hydraulic load frames for a range of force requirements
• Intuitive, versatile and user-friendly software with powerful test design capabilities
• Digital controllers with high channel density, high capacity and superior configurability
• Rugged, high-performance grips and fixtures
A compression test determines behavior of materials under crushing loads. The specimen is compressed and deformation at various loads is recorded. BESMAK can provide and offer a lot of options for users to test mortar samples such as single or double piston, single or double test space, electromechanical or servo-hydraulic universal cement test machines.
While manufacturing machines compliant to standards, BESMAK carries out a number of research and development studies and makes innovations that revolutionize compression machines. Sematron Touch Series Control and Software System, which is fully developed in-house, is capable of high speed data display with 1 kHz data acquisition speed, and reading of different sensors like LVDT, strain gauge, load cell and pressure transducers. Thanks to multiple channel, thecontroller unit allows to attach different frames with single hydraulic power pack.
With industrial 10 inch LCD display and user-friendly BESMAK Universal Testing Software, users can view the real time graphs and analyze the data point by point, make and save their own test templates, create their own test methods, email results directly from LCD, use the machine in their own language and get online support from BESMAK team.

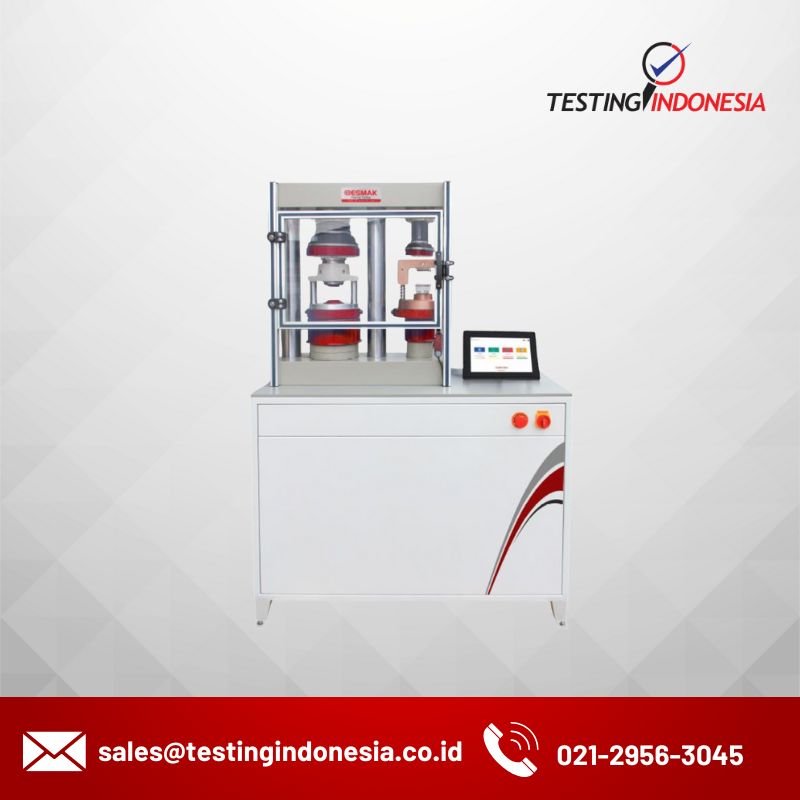

BCE-DP/LST series Double Piston Compression and Flexural Testing Machine comes with
• Rigid 2-Column type frame
• Hydraulic unit
• 1 x 50 mm distance pieces
• 2 channel electronic controller
• Linux based 10 inch industrial LCD display with built in test software
• PC software
• Software user manual
| Product Code | Product Name |
| BCE-DP100-10/LST | Compression and Flexural Testing Machine, Touch Screen Controlled with Loadcell, 100kN/10 kN Capacity (Double Piston) |
| BCE-DP200-20/LST | Compression and Flexural Testing Machine, Touch Screen Controlled with Loadcell, 200kN/20 kN Capacity (Double Piston) |
| BCE-DP200-50/LST | Compression and Flexural Testing Machine, Touch Screen Controlled with Loadcell, 200kN/50 kN Capacity (Double Piston) |
| BCE-DP250-15/LST | Compression and Flexural Testing Machine, Touch Screen Controlled with Loadcell, 250kN/15 kN Capacity (Double Piston) |
| BCE-DP250-25/LST | Compression and Flexural Testing Machine, Touch Screen Controlled with Loadcell, 250kN/25 kN Capacity (Double Piston) |
| BCE-DP300-15/LST | Compression and Flexural Testing Machine, Touch Screen Controlled with Loadcell, 300kN/15 kN Capacity (Double Piston) |
| BCE-DP300-20/LST | Compression and Flexural Testing Machine, Touch Screen Controlled with Loadcell, 300kN/20 kN Capacity (Double Piston) |
| BCE-DP300-25/LST | Compression and Flexural Testing Machine, Touch Screen Controlled with Loadcell, 300kN/25 kN Capacity (Double Piston) |
| BCE-DP500-15/LST | Compression and Flexural Testing Machine, Touch Screen Controlled with Loadcell, 500kN/15 kN Capacity (Double Piston) |
| BCE-DP500-20/LST | Compression and Flexural Testing Machine, Touch Screen Controlled with Loadcell, 500kN/20 kN Capacity (Double Piston) |
| BCE-DP500-100/LST | Compression and Flexural Testing Machine, Touch Screen Controlled with Loadcell, 500kN/100 kN Capacity (Double Piston) |
Frames:
| Product Code | Product Name |
| BCE-DP250-15/LFR | Compression Test Frame, 250 kN Compression 15 kN Flexural Capacity |
| BCE-DP250-20/LFR | Compression Test Frame, 250 kN Compression 20 kN Flexural Capacity |
| BCE-DP250-50/LFR | Compression Test Frame, 250 kN Compression 50 kN Flexural Capacity |
| BCE-DP300-15/LFR | Compression Test Frame, 300 kN Compression 15 kN Flexural Capacity |
