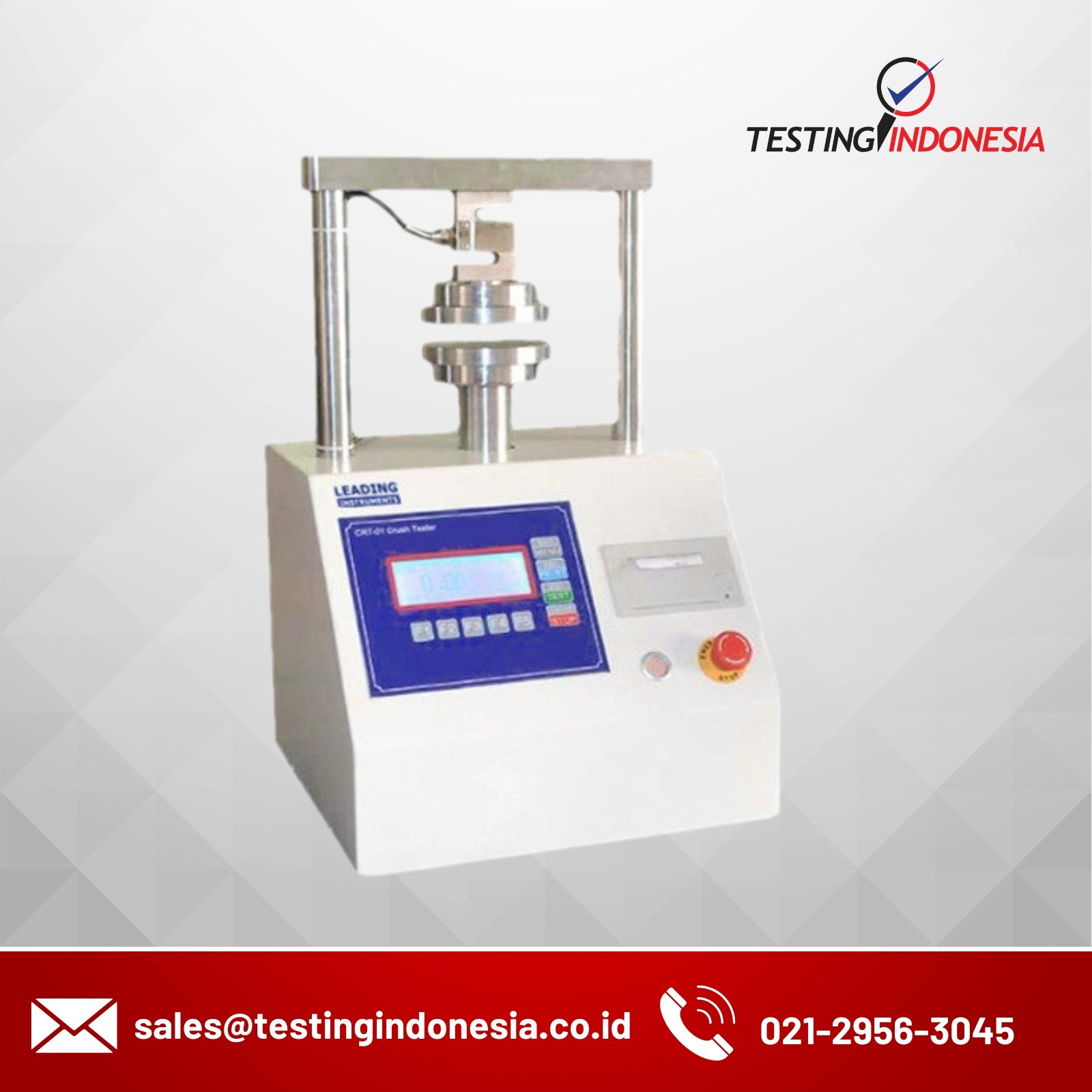

CRT-01 Crush Tester


CRT-01 Crush Tester is a high accuracy and intelligent instrument, designed according relevant

standards. The advanced components, mating parts and micro-computer are logical structured,

to ensure the property and appearance.


Please Note:

Pictures used are for illustration purposes only and may differ from the actual product received.

We are always dedicated to the innovation and improvement of product performance and function.

Therefore, technical specifications are subject to change without further notice.

Shinetime International and Leading Instruments reserve the rights of final interpretation and revision.


      * Mechatronics modern design concept, compact structure, nice appearance, easy maintenance.

      * Adopting high precison weighing sensor fixed on upper platen, to ensure colleting data rapidly and accurately.

      * Adopting high-speed ARM processor, to ensure the high degree of automation and intelligentize, very easy to operate.

      * It have power data processing function, can get all the statistical results.

      * Display the pressure force and deflection in time on the LCD display.

      * Finishing test, the measuring head can revert automatically.

      * Equipped with micro-printer, convenient to get the result.

      * With software, it can connect to computer, and display the curves, also can save, manage and print the data.

Technical Indexes

      Power:AC220V±10% 2A 50Hz;


      Varation of indication:< 1%


      Measuring range:(5~5000)N

      Platen parallelism:≤ 0.05 mm

      Working stroke:(1~70)mm

      Test speed:(12.5 ± 2.5) mm/min

      Circle pressure plate diameter:235mm

      Printout:Modular integrated thermal printer

      Working environment:Room temperature(20 ± 10)°C; relative humidity < 85%



ISO 12192, ISO 3035, ISO 3037, ISO 7263


      Mainframe, 4 rolls of printer paper, certificate of quality, operational manual, power line

      Optional: Computer and software, RCT central plates, RCT sample cutter, ECT sample cutter, ECT blocks, PAT clamps,etc.
