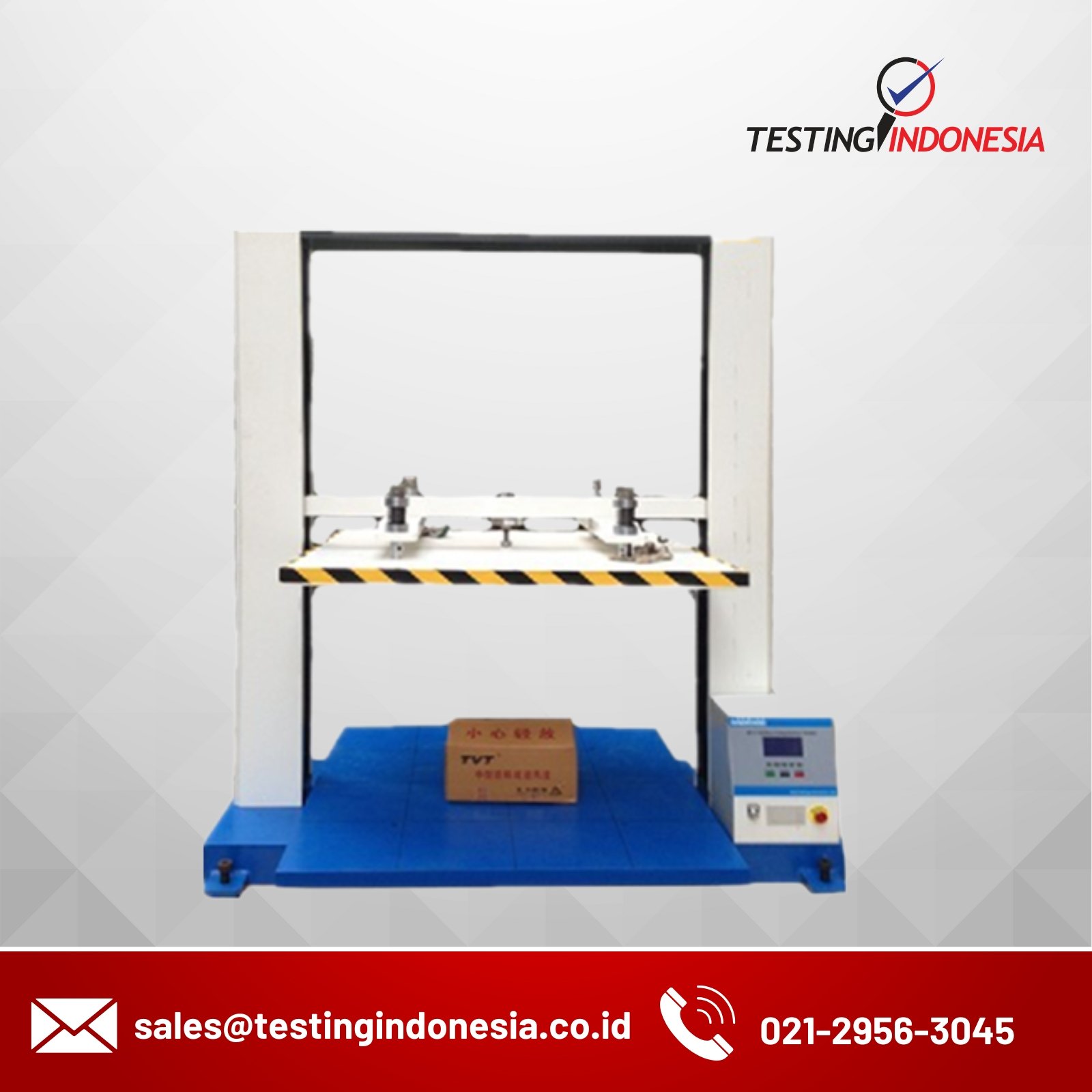

BCT-03 Box Compression Tester


BCT-03 Box Compression Tester is professionally used to test the compression resistance property

of carton box, corrugated box, honeycomb cardboard box and other packaging. And it’s also

applicable to container compression test of  plastic bucket (edible oil, mineral water), fiber drum,

carton, paper, cans, container barrels (IBC barrels).


Please Note:

Pictures used are for illustration purposes only and may differ from the actual product received.

We are always dedicated to the innovation and improvement of product performance and function.

Therefore, technical specifications are subject to change without further notice.

Shinetime International and Leading Instruments reserve the rights of final interpretation and revision.


      * Minicomputer control; high-speed ARM processor to ensure high automaticity, fast data collection,

        test automatically and intelligent judgment;

      * Three test methods:compression test; stacking test; press standard test;

      * Screen dynamic displays sample No., sample deformation, real-time pressure and initial pressure;

      * Serve motor controls with high precise, low noise and high speed advantages; Accurate position and

         fast response speed save test time;

      * 24 high-precision AD converter (resolution up to 1 / 10,000,000) and high precision weighing sensor

         to ensure the speed and accuracy of the data acquisition of the instrument force;

      * Ultimate travel protection, overload protection, bugs prompt and fault prompts intelligent configuration

         to ensure safe operation; Micro-printer can print test data easily.

      * Connecting with computer can display curve, analyze test data, save and print data.

Technical Indexes

      Test Range: 20 KN,  50 KN(Optional)

      Accuracy: 1% of Reading Value

      Force Resolution: 1 N

      Deformation Resolution: 0.1 mm

      Pressing Plate: Parallelism between upper and lower pressing plate: ≤1mm

      Test Speed: 1-300 mm/min( infinitely variable speeds)

      Return speed: 1-300 mm/min(CVT)

      Stroke: 1500mm

      Specimen Dimension: 1200mmx1200mmx1500mm

      Power Supply:AC 220V   50 Hz



ISO 2872, ISO 2874


      Mainframe, Control cabinet, Power line, Connecting line, 4 rolls of printer paper

      Optional: computer control system
