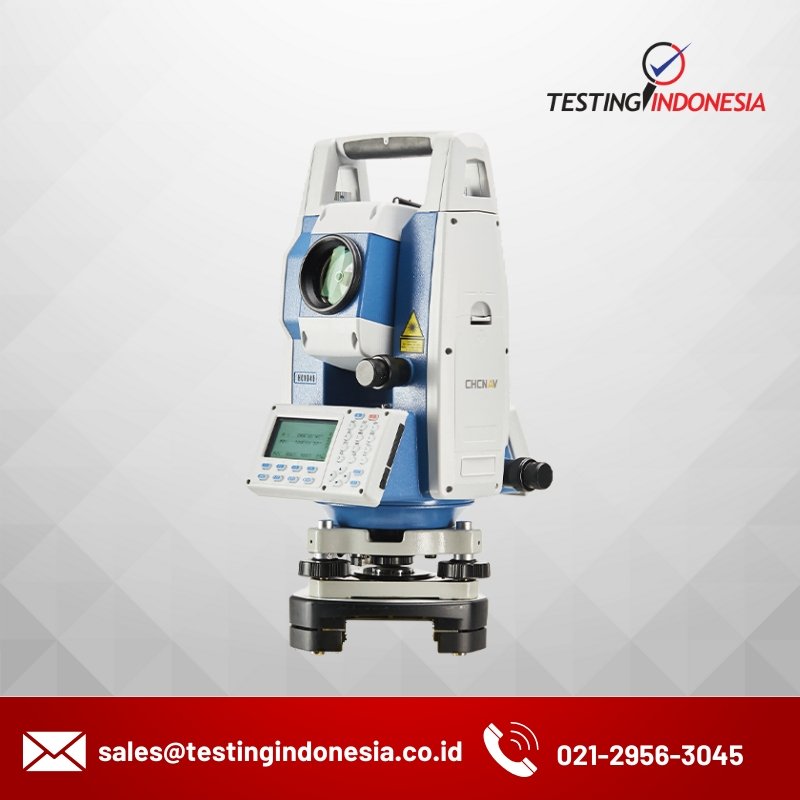

CTS-112R4

Description

The CTS-112R4 total station is based on proven technologies and designed for users who need the most cost-effective survey solution. It has an angle accuracy of 2” and integrates a high efficiency EDM to provide measurement range of 1000 m reflectorless and up to 5 000 m using a single prism, with millimeter accuracy.

Each replaceable battery provide 8 hours continuous working time, so you do not have to worry about losing power in the field any more.

Features

TOTAL STATION USE MADE EASY

Best-in-class industrial design with dual face keyboards and built-in laser plummet
Dual face keyboards with buttons illumination to minimize mistakes provide optimum viewing and convenience under any environmental conditions. Built-in laser plummet allows quick instrument setup in all lighting conditions.

HIGH EDM PERFORMANCES

Up to 1000 m reflectorless measurement range
The CTS-112R4 is one of the fastest total stations in its class, with a distance measurement speed of 0.3 seconds. Reflectorless range is up to 1000 m and distance measurement to single prism is up to 5000 m.

EXTENDED MEMORY CAPACITY

Store up to 30,000 points in internal memory
Adding external SD card up to 32 GB will boost record capacity to 245,760,000 points.

INTUITIVE ONBOARD SOFTWARE

Bring productivity to any typical survey and construction projects.
The CTS-112R4 is a versatile, easy to use, rugged total station with a variety of advanced field applications software built-in to make your work more efficient.

Spesification

Distance measurement

Laser outputPrism: Class 2 Reflective sheet: Class 2 Non-prism: Class 3R
Distance measurementPrism:5000 m Reflective sheet: 1000 m Non-prism: 1000 m
AccuracyPrism:2 mm + 2 ppm Reflective sheet: 3 mm + 2 ppm Non-prism: 3 mm + 2 ppm (1)
Measuring timePrism fine: 0.3 s Prism tracking: 0.1 s
Laser typeRed visible laser
Carrier0.650 - 0.690μm
EDM typeCoaxial
Resolution0.1 mm

Angle measurement

Diameter79 mm
Minimum readout0.1”/1”/5”/10” optional
Accuracy2”
Detection methodHorizontal:Dual/ Vertical: Dual

Telescope

ImageErect
Tube length154 mm
Objective lens effectiveFor telescoping: 45 mm
ApertureFor measuring: 50 mm
Magnification30
Minimum focus distance1.4 m
Resolving power3”
Reticle illumination4 brightness levels

Auto compensator

SystemDual axis photoelectric detection
Working range± 3′
Accuracy1′′

Laser plummet

Accuracy1.5 mm at 1.5 m instrument height
Laser spot size2.5 mm

Display

TypeLCD,6 lines digital screen
KeyboardAlphanumeric, 28 keys with backlight
Control panelDouble
Screen size2.8 inch

Communication

PortsMini-USB, SD
Bluetooth ® (optional)v 2.0

Interface and data recording

Internal storage4 MB (ready for 30,000 points)
External storageUp to 32 GB (ready for 245,760,000 points)

Battery

Battery typeRechargeable lithium battery
Battery voltageDC7.4 V 3,100 mAh
Operating timeContinuousdistance/angle: 8 hours Continuousangle-only: 16 hours
Charging timeAbout 3 hours

Environment

Operating temperature-20°C to +50°C (-4°F to122°F)
Dust and water proofIP55

Size and weight

Size160 x 150 x 330 mm (6.3 x 5.9 x 13.0 in)
Weight5.2 kg
