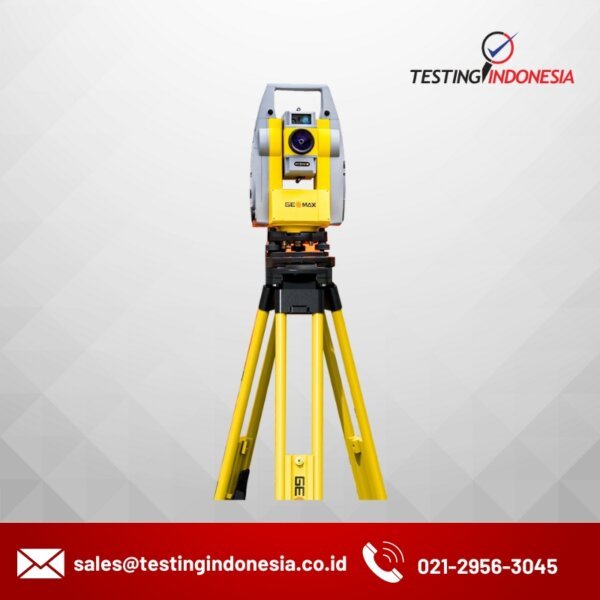

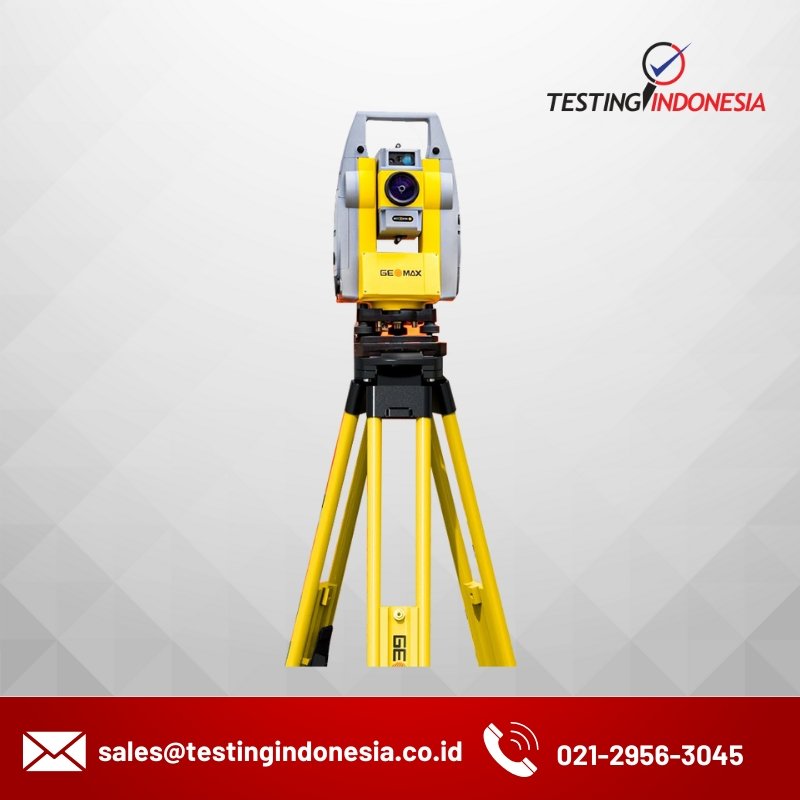

Zoom75 Series – Robotic Total Station

Name: Testingindonesia
Rating: 5

The robotic total station solution that makes it easy for you to start digitising your construction site.

Category: Robotic Total Station Tags: robotic total station, Zoom75 Series – Robotic Total Station

Description

Modern Data capturing & handling

No more paper plans. Upload your plans onto the X-PAD Ultimate field software or into the TPS, and conveniently edit the CAD drawings on-site on the big screen of the GeoMax robotic total stations. Big files can be handled easily and fast thanks to the strong performing processor of the Zoom75. With the unique X-TILT feature and the Zenius800, inaccessible points are no longer a challenge. X-TILT automatically calculates a point position by tilting the tablet attached to the prism pole, in two directions.

Seamless workflow with maximum flexibility

X-PAD software, GeoMax field controllers and the Zoom75 robotic TPS are carefully chosen and developed to enable a carefree and efficient workflow. X-PAD gives you the flexibility to choose your preferred operating system and field controller as it is available as fully-featured Android ™ and Windows ® field software running on a multitude of field controllers.

One-person total station

Equipped with the long-range Bluetooth® handle, the Zoom75 transforms into a true one-person total station. It supports the advanced prism search, based on the GNSS position of the controller, mounted on the pole. As there is no need for special, expensive and power-consuming active prisms, this total station is ideal on any worksite. Zoom75 keeps your pole lightweight and convenient to carry all survey-day long!

Convenient and safe data management

X-PAD 365, the web-based GeoMax cloud platform, was created to address data management and collaboration challenges surveyors and construction professionals meet every day. Working with the Zoom75, data can be accessed, stored, and shared via the X-PAD 365 File Manager. Your data is always safe, thanks to automatic backups. Furthermore, the Collaborative Survey and Stakeout feature allows several users to work on the same surveying or stakeout project together, sharing real-time surveyed points and drawings and immediately seeing their progress.

Keep X-PAD at its best – select your service

X-PAD Ultimate software is always maintained without any extra costs. By keeping your X-PERT service active, you can continuously profit from the latest software improvements.

Reliable partner

Hexagon is known for driving innovation and technological progress. As a part of this group, GeoMax can guarantee that its solutions work when you do.

Features

Modern data handling

Large 5″ VGA touch screen
Powerful processor - easy & fast handling of big files
Automatic data backup
GeoTRAil prism search

Maximum flexibility

Field software: running on Android and/or Windows
Field controllers: GeoMax’ or your own device

Smart Investment

No maintenance cost for field software
Latest Hexagon technology
Stress-free equipment: PIN/ PUK – anti-theft feature

Spesification

Zoom75 with X-PAD is the right solution to digitalise your site The Zoom75 and X-PAD solution was developed to meet the demands of both novice and experienced surveyors. You have the choice to use two people and the onboard software, or a single surveyor with a field controller of choice or a phone. Both guarantee fast and convenient work with CAD data. The instrument’s big screen, optional long-range Bluetooth handle and high performing processor add to the easy, intuitive workflow of X-PAD software. Available for both Android and Windows, X-PAD provides a familiar user experience, reducing the need for training. In addition, software maintenance for X-PAD Ultimate comes at no extra cost.

ANGLE MEASUREMENTS
Accuracy	1” (0.3 mgon), 2” (0.6 mgon), 3” (1.0 mgon), 5” (1.5mgon)
Display resolution	0.1”
Method	Absolute, continuous, diametrica
Compensation	Quadruple axis
TELESCOPE
Magnification	30x
DISTANCE MEASUREMENTS TO STD. PRISM ACCURACY/TIME (TYPICAL)
Single (fast)	2 mm + 1.5 ppm / 0.8s
Standard	1 mm + 1.5 ppm / 2.4s
Continuous	3 mm + 1.5 ppm / < 0.15s
Range	up to 3500m
DISTANCE MEASUREMENTS - REFLECTORLESS
Range	accXess5 / accXXess10 500 m / 1000 m
Accuracy	2 mm + 2 ppm (* > 500 m: 4 mm + 2 ppm;)
Time	Typ. 2-6 sec
Precise capture	8x20 mm at 50 m
INTERFACE
Keyboard	Full alphanumeric; 25 keys; illuminated (2nd optional)
Display	5” WVGA 800x480 colour and touch with LED backlight
Data recording	2 GB internal memory; removable SD card and USB stick
Ports	Serial; USB; internal Bluetooth®; long-range Bluetooth handle External power and WLAN
Operating system	Microsoft® Windows® EC 7.0
MOTORISATION
Technology	Hybrid Drives
GeoTRAil - GNSS based prism search
Speed	100 g/sec
TRack - Automatic prism logging
Range	800 m at round prism
Max speed	90 km/h at 100m
AiM - Automatic prism fine aiming
Range	1,000 m at round prism
Hz/V accuracy	1”
Technique	Image processing
NAVLIGHT ™ - ALIGNMENT AID
Range	5 m to 150 m
Accuracy	5 cm at 100 m
PHYSICAL SPECIFICATIONS
Weight	5.0 - 5.3 kg (w/o battery and tribrach)
Operating- / storage temperature	-20° C to 50° C / -40° C to 70° C
Protection class	IP55 dust and waterproof rating
Humidity	95%, non-condensing
POWER SUPPLY
Internal battery	Removable Li-Ion 4.4 Ah / 7.4 V
Operating time	Up to 8 h (** Battery time may be shorter depending on conditions)
PLUMMET
Type	Laser point, adjustable brightness
Accuracy	1.5 mm at 1.5 m instrument height

Download Catalogue
