DCCT-1-40kV-pinhole_cable-tester-with-handle

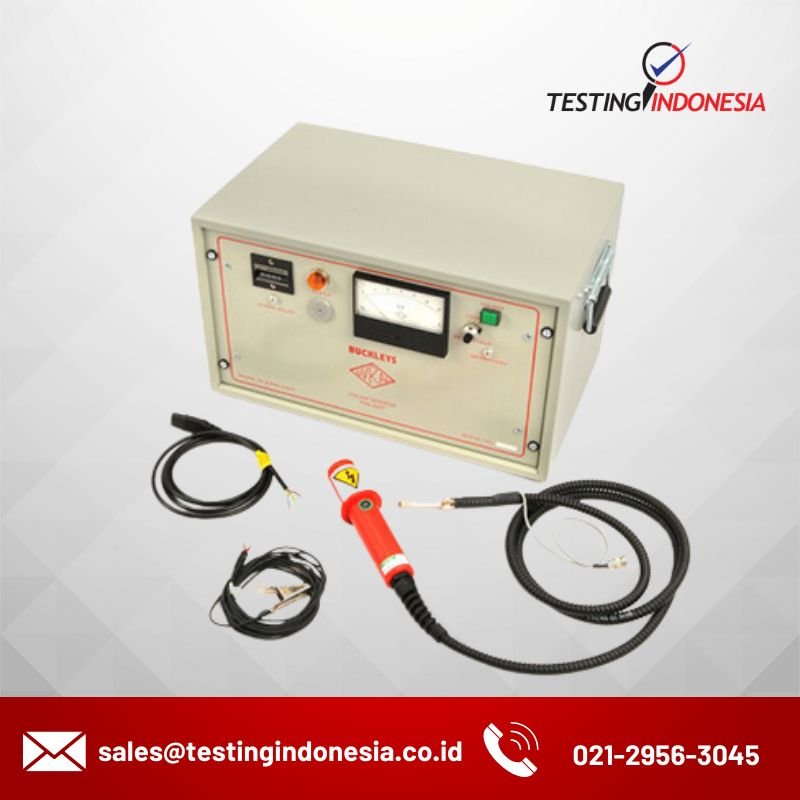

DCCT 1- 40kV pinhole/cable tester with handle

Categories: , Tags: , , , , , , ,

Description

The DCCT is used extensively in the manufacturing industry for checking cables, plastic sheets, battery cases, moulded components and non-conductive coatings on steel pipework.

For testing cables, the DCCT can be used with a high-voltage electrode box using brush, air-gap or ball-chain curtain electrodes. Material suitable for the electrodes can be supplied – details on request.

A calibration certificate is included in the comprehensive operating manual.

DCCT 1-7.5kV pinhole

Specification
  • Maximum current: <1mA
  • Suitable for continuous operation
  • Meter accuracy +/-2%
  • Mains supply voltage: 110/120V or 220/240V AC, 50/60Hz
  • Dimensions: 50cm x 30cm x 33cm
  • Weight (unit only): 17Kg
  • Packed weight (inc.handle): 23Kg
  • Dimensions (packed): 60cm x 60cm x 60cm
Safety Note: Armoured cable lengths should not exceed 2.1m with handle fitted. Note: Due to ongoing technical developments, all stated information is typical and is subject to change without notice or obligation. Commodity Code: 9027802000

DCCT 2-15kV pinhole

Specification
  • Maximum current: < 1mA
  • Suitable for continuous operation
  • Meter accuracy: +/-2%
  • Mains supply voltage: 110/120V or 220/240V AC 50/60Hz
  • Dimensions: 50cm x 30cm x 33cm
  • Weight (unit only): 17Kg
  • Packed weight (inc. handle): 23Kg
  • Dimensions (packed): 60cm x 60cm x 60cm
Safety Note: Armoured cable lengths should not exceed 2.1m with handle fitted. Note: Due to ongoing technical developments, all stated information is typical and is subject to change without notice or obligation. Commodity Code: 9027802000

DCCT 4-30kV pinhole

Specification
  • Maximum current: <1mA
  • Suitable for continuous operation
  • Meter accuracy: +/-2%
  • Mains supply voltage: 110/120V or 220/240V AC  50/60Hz
  • Dimensions: 50cm x 30cm x 33cm
  • Weight (unit only): 17Kg
  • Packed weight (inc.handle): 23Kg
  • Dimensions (packed): 60cm x 60cm x 60cm
Safety Note: Armoured cable lengths should not exceed 2.1m with handle fitted. Note: Due to ongoing technical developments, all stated information is typical and is subject to change without notice or obligation. Commodity Code: 9027802000

DCCT 5-40kV pinhole

  • Maximum current: <1mA
  • Suitable for continuous operation
  • Meter accuracy: +/-2%
  • Mains supply voltage: 110/120V or 220/240V AC 50/60Hz
  • Dimensions: 50cm x 30cm x 33cm
  • Weight (unit only): 17Kg
  • Packed weight (inc handle): 23Kg
  • Dimensions (packed): 60cm x 60cm x 60cm
Safety Note: Armoured cable lengths should not exceed 2.1m with handle fitted. Note: Due to ongoing technical developments, all stated information is typical and is subject to change without notice or obligation. Commodity Code: 9027802000
