Din Type Abrasion Tester

Description

Model Name : TO-200D

Features

Application Field

Rubber, PU, Outsole for Shoes, etc.

Standard

DIN 53516, KS M 6624, JIS K 6329, 6264

Product Description

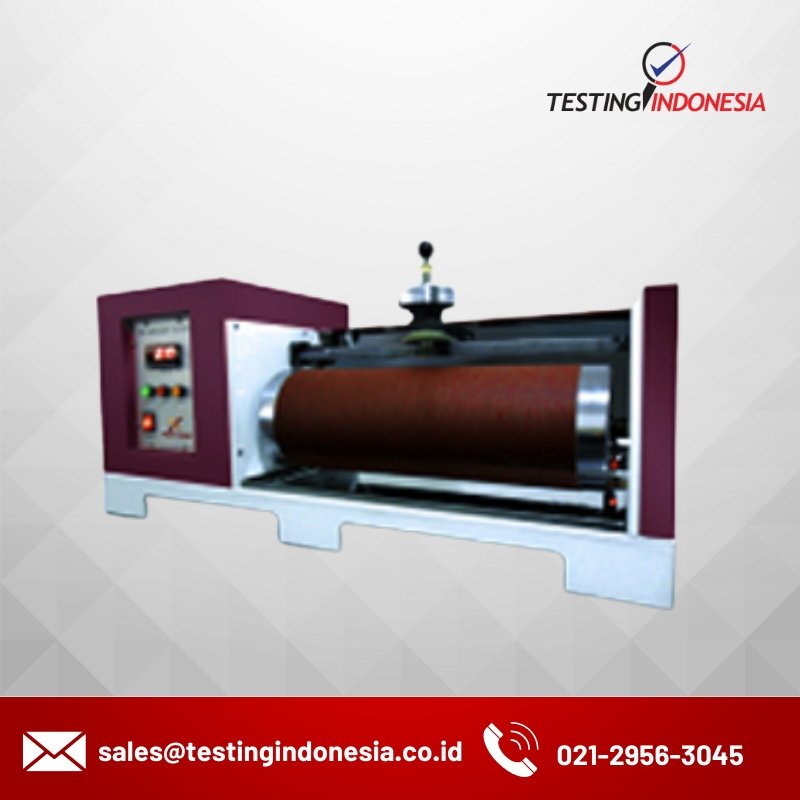

  • This is a device that measures the abrasion. The sample such as vulcanized rubber, foam rubber, PU foam, and etc. is worn down to a drum attached to the abrasive cloth of standard by rotating at a rate of speed 40RPM/MIN. By comparing the mass of worn standard specimens and that of specimens in the same condition, abrasion is measured.
  • High-precision DRUM-the grip moves at the speed of 4.2mm/min.
  • Automatically shutdown and auto-return is possible./ Standard specimens are offered

Spesification

ModelTO-200D
Test Loading2.5N, 5N, 10N
Drum Diameter150mm
Drum Length460mm
Drum Rotation40 RPM
Grip Lateral Movement4.2mm/min (Drum Revolution)
Abrasive Paper#60
Abrasion Speed19.2mm/min
Dimension 700 x 300 x 300mm
Weight50kg
Power AC 220V 50Hz
