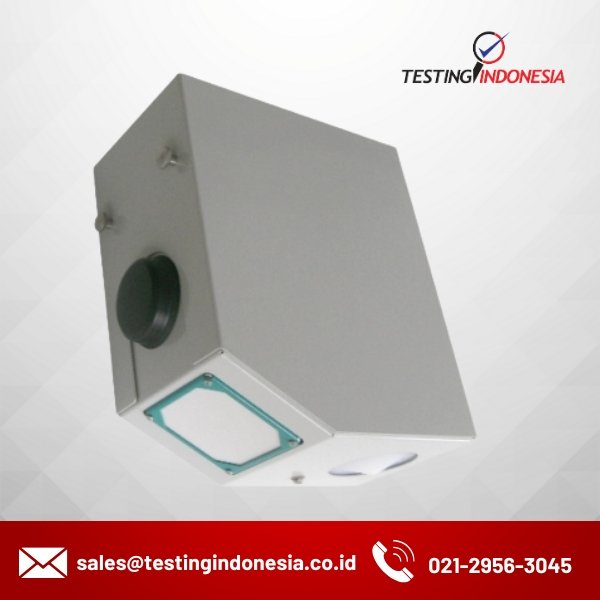

DISCHARGE RADAR RQ-30 ADMS

Name: Testingindonesia
Rating: 5

Category: Water Discharge Monitoring Tags: alat ukur debit air, jual alat ukur debit air, rq-30 adms, water discharge, water discharge instrument, water discharge monitoring

Description

WELL PROVEN RQ-30 DISCHARGE MEASUREMENT WITH DATA LOGGER AND DATA TRANSMISSION IN COMPACT HOUSING

The RQ-30 ADMS is an all-in-one discharge measurement System. It contains the non-contact flow velocity and water level sensors of the RQ- 30 and applies the same algorithms and model to calculate the discharge in the RQ-30 sensor.

The rechargeable batteries allow autonomous operation for several month and the integrated charge controller provides for an easy connection of a solar panel. The integrated data logger of the RQ-30 ADMS offers wireless 2-way data communication. The 2-way communication makes it possible to remotely access the sensor and data logger anytime from anywhere.

Notifications by E-mail and SMS are a standard feature of the RQ-30 ADMS. Optionally, the RQ-30 ADMS can be equipped with a SOMMER Time laps camera for visual surveillance of the monitoring site.

Features

TECHNICAL DETAILS

Protection class: IP 66
Battery: 24 Ah / 12 V
Recommended solar panel (for mid-latitude): 20 W
Power consumption: active operation 150 mA, standby 3 mA (total system)
Operating temperature: - 20° - 60° C
Total weight: 19.5 kg
Mischellaneous: over voltage protection, reverse power protection, lightning protection

WATERLEVEL MEASUREMENT

Measuring range: 0 - 15 m standard version / 0 - 35 m extended version
Resolution: 1 mm
Accuracy: +/- 2 mm
Radar frequency: 26 GHz (K-Band)
Radar opening angle: 10°

VELOCITY MEASUREMENT

Measuring range: 0.08 - 16 m/s (depening on flow conditions)
Accuracy: +/- 0.01 m/s; +/- 1 % FS
Resolution: 1 mm/s
Direction recognition: +/-
Measurement duration: 5 ... 240 sec.
Measurment interval: 8 sec. ... 5h
Measuring frequency: 24 GHz (K-Band)
Radar opening angle: 12°
Distance to water surface: 0.50 - 35 m

DATA TRANSMISSION

Supported networks: quad band EGSM 850 / 900 / 1800 / 1900 MHz networks
Transmission power: class 4 (2W) with 850 / 900 MHz; class 1 (1W) with 1800 / 1900 MHz
2G/3G/4G: up to 14.4 kbps (transparent) and 9.6 kbps (non-transparent)
Data transfer: FTP server or HTTP server
MDS server: package including database, station- /user management and data visualisation via web browser

DATA LOGGER

Storage: up to 500,000 values
Data readout: remotely
