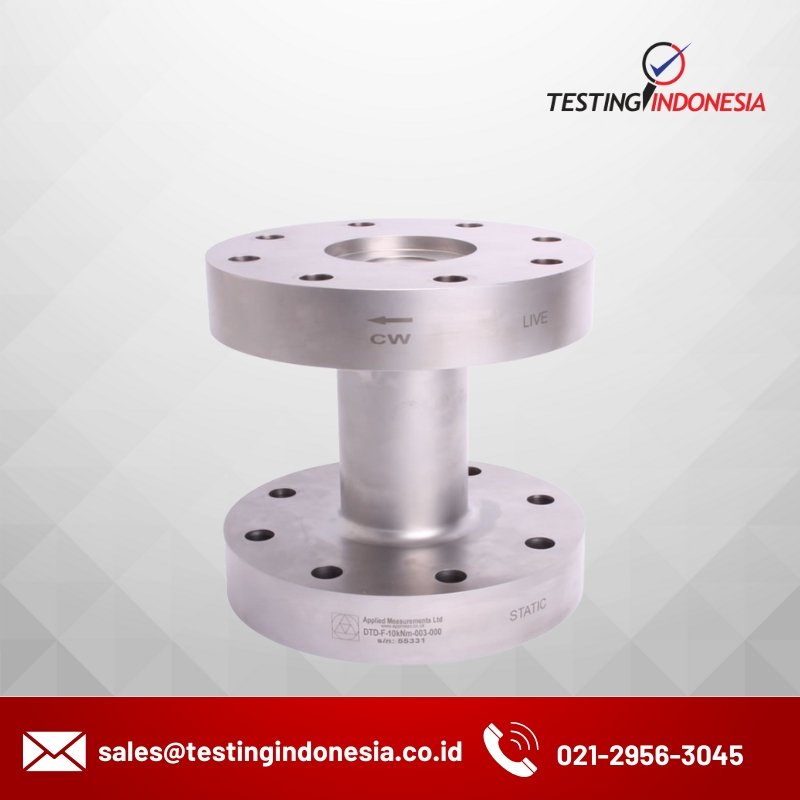

Flange type Static/Reaction Torque Transducer



Description

The DTD-F series of static / reaction torque transducers have end flanges for bolting between machinery where a direct drive is required. Applications including the testing of automotive drives, aircraft actuator and industrial robots.

The DTD-F flange static torque transducer is constructed from Stainless Steel on capacities up to 10kNm while capacities from 20kNm upwards are constructed from Alloy Steel.

Installation and setup is made fast and simpler with its integral, robust connector.

The design of the DTD-F lends itself re

Product Dimensions

DTD-F flange static torque transducer Outline Drawing
Capacity (Nm)AØBØCDEØFGWeight kg
(approximate)
0-10, 0-20, 0-50, 0-1007610038.113282.58.21.4
0-200, 0-5007610038.113382.58.21.4
0-1000, 0-20009012550.119610810.23.1
0-300012015050.135610816.38.7
0-500012020280.138816516.316.9
0-10k19020280.138816516.317.2
0-20k, 0-30k, 0-50k180278110.150423524.556

All dimensions are in mm.

Wiring Details

WireDesignation
Red+ve excitation
Blue-ve excitation
Green+ve signal (clockwise)
Yellow-ve signal
ScreenTo ground – not connected to sensor body

Ordering Codes & Options

Core ProductCapacity (inc Engineering Units)Cable Length (m)Specials CodeResult
DTD-F10Nm003000DTD-F-10Nm-003-000
DTD-F20Nm003000DTD-F-20Nm-003-000
DTD-F50Nm003000DTD-F-50Nm-003-000
DTD-F100Nm003000DTD-F-100Nm-003-000
DTD-F200Nm003000DTD-F-200Nm-003-000
DTD-F300Nm003000DTD-F-300Nm-003-000
DTD-F500Nm003000DTD-F-500Nm-003-000
DTD-F1000Nm003000DTD-F-1000Nm-003-000
DTD-F2000Nm003000DTD-F-2000Nm-003-000
DTD-F5000Nm003000DTD-F-5000Nm-003-000
DTD-F10,000Nm003000DTD-F-10kNm-003-000
DTD-F20,000Nm003000DTD-F-20kNm-003-000
DTD-F30,000Nm003000DTD-F-30kNm-003-000
DTD-F50,000Nm003000DTD-F-50kNm-003-000

Dily to customisation, allowing us to offer custom flange sizes and fixing configurations, as well as versions with sealing to IP68 for applications where operating conditions are particularly harsh or involve total submersion.

Features

  • Ideal for Bolting Between Machinery to Measure Direct Torque
  • Protected From Low Pressure Water Jets – Suitable for Most Industrial Environments
  • Offshore and Marine Submersible Versions Available
  • Fast and Simple Installation with its Integrated Connector
  • Customised Shaft and Configuration Options to Suit Your Exact Application

Spesification

Technical Specifications
Rated Capacity (RC)Nm0-10, 0-20, 0-50, 0-100, 0-200, 0-300, 0-500, 0-1000, 0-2k, 0-3k, 0-5k, 0-10k, 0-20k, 0-30k, 0-50k
Operating ModesClockwise (CW)/Counter-Clockwise (CCW) / Clockwise (CW) & Counter-Clockwise (CCW)
Sensitivity (RO)mV/V10Nm = 0.6 / 20Nm = 0.7 / 50Nm = 1.0 / 100Nm to 50kNm = 1.5typ.
Zero Balance/Offset±%/Rated Output<1
Output Symmetry (CW vs. CCW)±%/Rated Output<0.25 typical
Non-Linearity±%/Full Scale Output<0.1 (<0.05 typical)
Hysteresis±%/Full Scale Output<0.1 (<0.05 typical)
Repeatability±%/Full Scale Output<0.02
Temperature Effect on Zero±Full Scale Output/ ̊C<0.010
Temperature Effect on Output±/Reading/ ̊C<0.010
Bridge ResistanceOhms700 nominal
Insulation ResistanceMegaohms>5000 @ 50Vdc
Excitation VoltageVolts AC or DC10 recommended (2-15 acceptable)
Operating Temperature Range̊C0 to +80
Compensated Temperature Range̊C+20 to +60
Storage Temperature Range̊C0 to +80
Safe Overload% of Rated Capacity150
Ultimate Overload% of Rated Capacity300
IP Rating (Environmental Protection)IP65
WeightSee dimensions table
Fatigue Rating20 million fully reversed cycles
Cable Length (as standard)metres3
Cable Type10Nm to 10kNm: M8 Binder connector with mating 3 metre cable assembly 20kNm to 50kNm: M12 Binder connector with mating 3 metre cable assembly
Construction17-4PH stainless steel + 303 stainless steel
Resolution1 part in 250,000 (with appropriate instrumentation)
