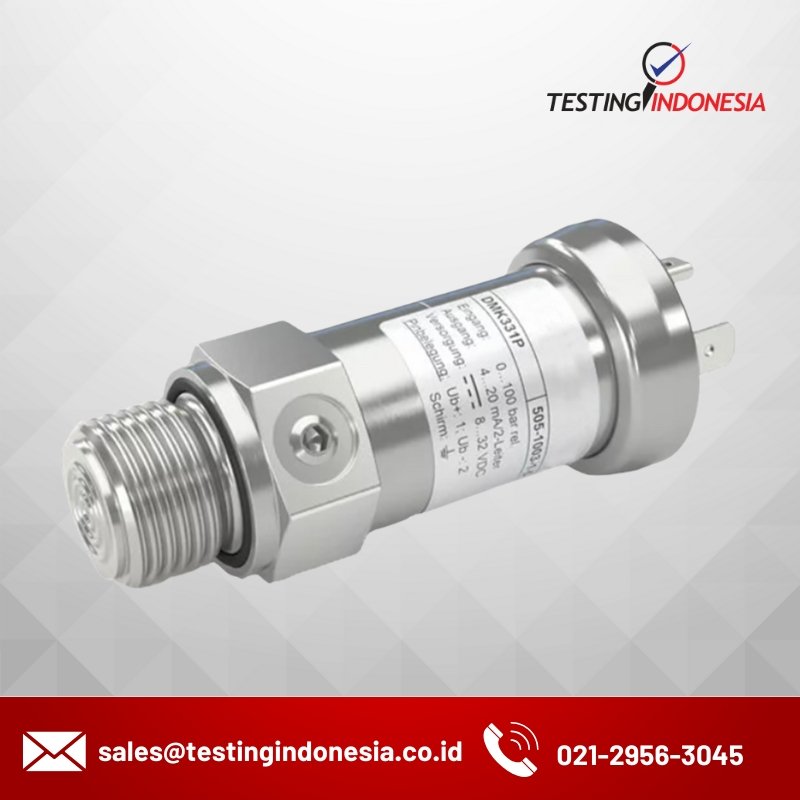

Flush Welded Pressure Transducer


The DMK331P flush welded pressure transducer has a totally flush pressure port making it ideal to use in viscous and pasty media.  Optional Ex ia intrinsically safe for gases and dust versions is available.  Other options include a food compatible filling fluid with FDA approval and cooling element for media temperatures up to 300°C.

The DMK331P flush welded pressure transducer is suitable for plant and machine engineering and food industry applications.

It has a pressure range from 0-60 bar up to 0-400bar gauge or absolute.  Plus, it comes with 4-20mA and 0-10Vdc output options and various mechanical and electrical connections to suit your application.


  • Ranges: 0-60bar up to 0-400bar
  • Gauge / Absolute
  • Outputs: 4-20mA / 0-10Vdc
  • Intrinsic Safety Version 4-20mA Optional
  • Supply: 8 – 32Vdc Standard (10 – 28Vdc for Ex-protection) / 14-30Vdc Optional
  • Accuracy: ≤±0.50 % FSO


Product Dimensions

With Standard G1/2″ Flush DIN 3852

DMK331P flush welded pressure transducer Outline

All dimensions are in mm.
