Description
TIME3110 (TR110) is a handheld surface roughness tester for Ra, Rz measurement. It is economically priced and well suited for various mechanical manufacturing processes.

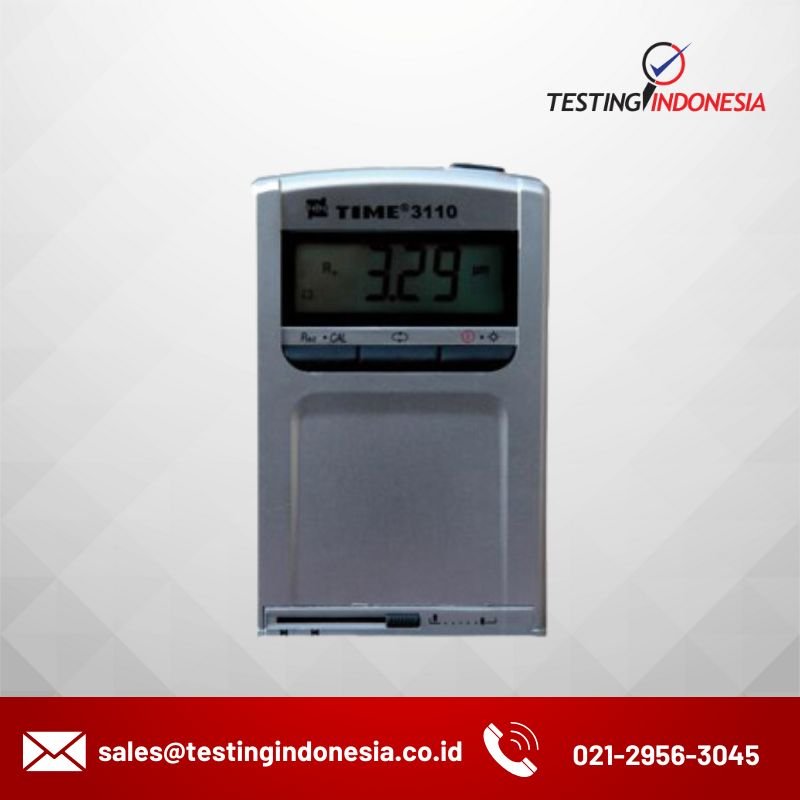

Handheld Surface Roughness Tester TIME®3110 (TR110)
TIME3110 (TR110) is a handheld surface roughness tester for Ra, Rz measurement. It is economically priced and well suited for various mechanical manufacturing processes.
Spesification
| Model | TIME ® 3110 |
| Roughness parameter | Ra, Rz |
| Tracing length | 6mm |
| Tracing speed | 1.0mm/sec |
| Cut-off lengths | 0.25mm/0.8mm/2.5mm |
| Evaluation length | 1.25mm/4.0mm/5.0mm |
| Measuring range | Ra: 0.05-10.0μm Rz: 0.1-50μm |
| Accuracy | ±15% |
| Repeatability | <12% |
| Filter | RC analogue |
| Pick-up | Piezoelectric |
| Radius and angle of the stylus point | Diamond, Radius : 10±2.5μm Angle: 90°(+5°or -10°) |
| Operating temperature | 0~40℃ |
| Humidity | <80% |
| Storing temperature | -25℃ ~ 60℃ |
| Power | 3.6V Li-ion battery |
| Charger | DC6V, 3 hours (charging time) |
| Dimension (mm) | 110×70×24 |
| Weight (g) | 160 |
