Description
TIME322X series roughness tester is equipped with several optional pickup to suit for different applications.

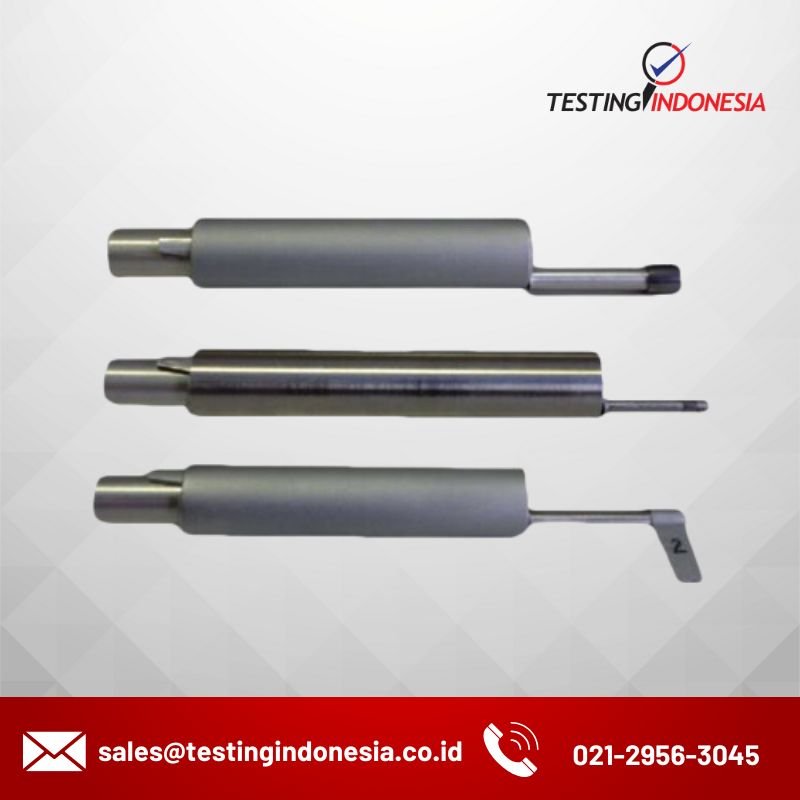

Pickup For TIME3220/3221/3223 Roughness Tester
TIME322X series roughness tester is equipped with several optional pickup to suit for different applications.
Spesification
- TIME S201 (standard)
Radius for needle point: 5μm
Angle for needle: 90°
Force for needle: 4mN
Measuring range: 400μm - TIME S201 (standard)
Radius for needle point: 5μm
Angle for needle: 90°
Force for needle: 4mN
Measuring range: 400μm - TIME S214 for curved surface
Radius for needle point: 5μm
Angle for needle: 90°
Force for needle: 4mN
Measuring range: 200μm - TIME S211 for small hole
Radius for needle point: 5μm
Angle for needle: 90°
Force for needle: 4mN
Measuring range: 100μm
Min. diameter of hole: ø2mm
Max. depth of hole: 13.5mm - TIME S213 pick up for deep hole
Radius for needle point: 5μm
Angle for needle: 90°
Force for needle: 4mN
Measuring range: 400μm
Min. width of hole: ø2mm
Max. depth of hole: 20mm - TIME S220 “O” type pick up
Radius for needle point: 5μm
Angle for needle: 90°
Force for needle: 4mN
Measuring range: 200μm
Thickness of lead head: 1mm
