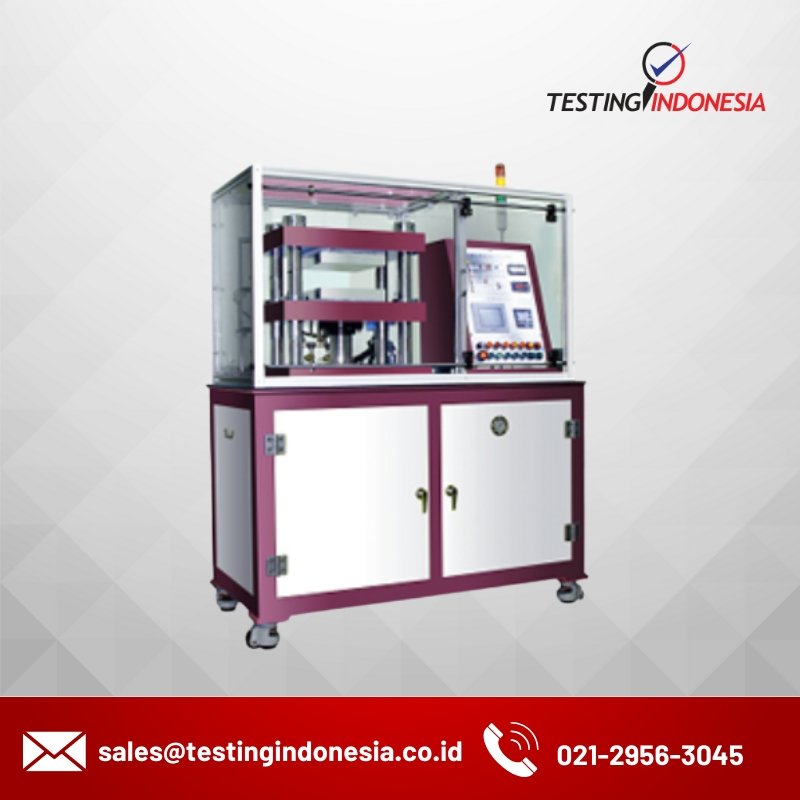

Hot Press

Description

Model Name : TO-200

Features

Application Field Plastic, compound, Rubber, etc. Product Description
  • This tester is a product that can squeeze the plastic, compound, robber to high temperature and extrude or produce specimens.
  • Manual/Automatic.
  • Natural Cooling Type / Water Cooling Type.
  • General Controller Type / Program Type.

Spesification

Model TO-200
Heating Plate 300 x 300 mm
Motor  Hydronic Pump
Pressure Max. 30 ton
Stroke Max. 200mm
Temp. Range  RT ~ 200 °C (PID Controller)
Temp.Accuracy  ± 0.1 at 100°c
Controller for Pressure Relief Type
Timer 4 Digit Display
Cooling System Water Cooler
Net Weight Approx. 1,500 kg
Dimensions Approx. 150 x 800 x 1650mm
Power 380v, 3P, 50/60Hz
