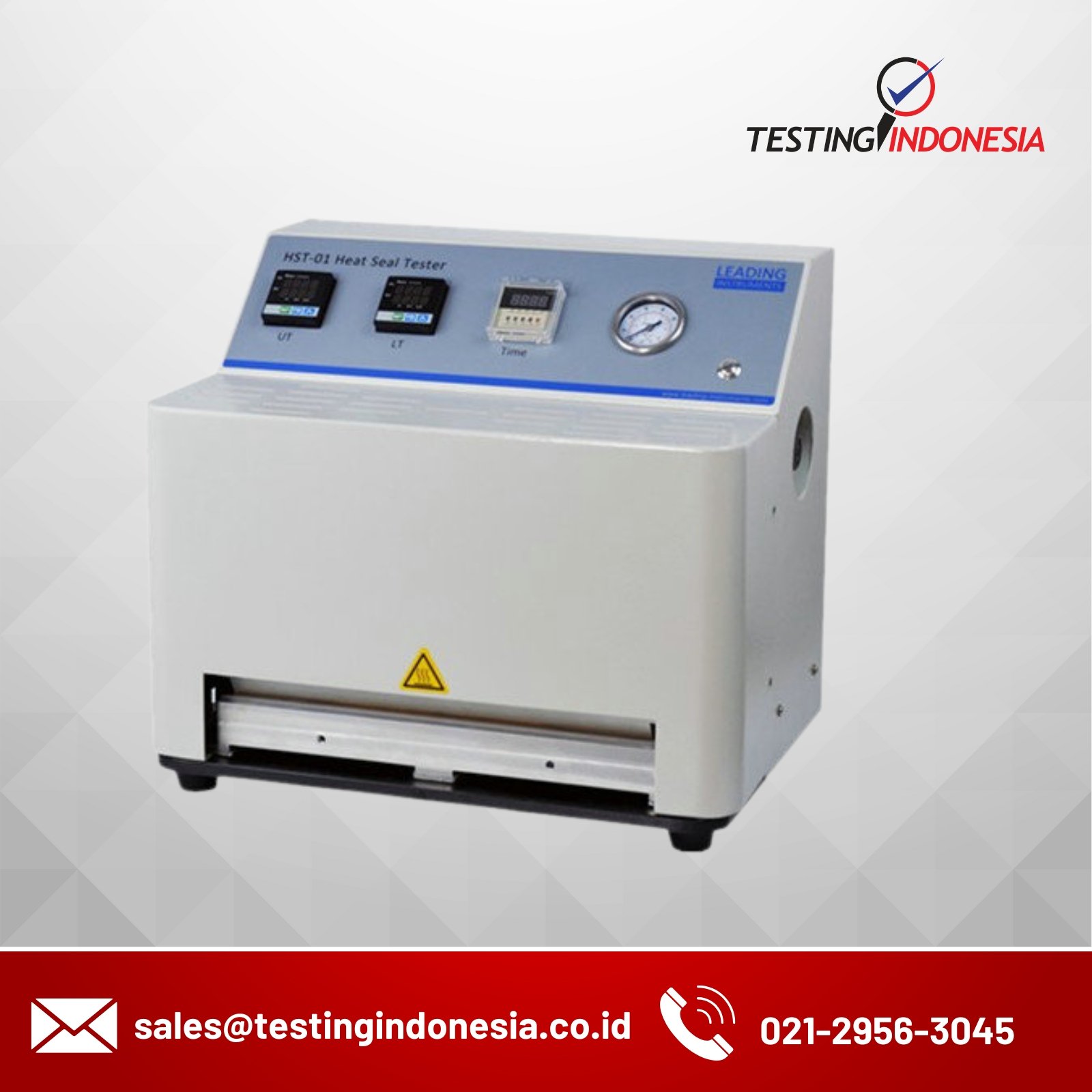

HST-01 Heat Seal Tester


HST-01 Heat Seal Tester seals the specimen to determine the seal parameters of basic film,

laminated films, coating paper and other heat sealing laminated films according to the requirement

of relative standards. The seal parameters include heat seal temperature, dwell time, and the

pressure of heat seal. Heat seal materials that have different melting point, heat stability, fluidness,

and thickness of could show various heat seal properties, which cause obviously different seal technique.


Please Note:

Pictures used are for illustration purposes only and may differ from the actual product received.

We are always dedicated to the innovation and improvement of product performance and function.

Therefore, technical specifications are subject to change without further notice.

Shinetime International and Leading Instruments reserve the rights of final interpretation and revision.


      * Micro-computer control; LCD display;

      * Manu interface, PVC operation board;

      * P.I.D digital temperature control system:

      * Underlying double cylinder simultaneous loop;

      * Two test start mode of manual and foot pedal;

      * Independent temperature control of the upper and lower heat seal head;

      * Various heat seal surfaces made to order;

      * Encapsulate even-temperature heating pipe by aluminum;

      * Rapid insertion and separation heating pipe plug;

      * Anti-scald design;

      * RS232 port;

Technical Indexes

      Seal Temperature: room temperature~300ºC

      Temperature Control Accuracy: ±0.2ºC

      Dwell Time: 0.1s~999.9s

      Dwell Pressure: 0.05MPa~0.7MPa

      Seal Surface:330 mmx10 mm (also customize)

      Heat Type: Single heat surface or double heat surface

      Gas Source Pressure: 0.05MPa~0.7Mpa (Users prepare gas source               themselves)

      Gas Source Inlet: Ф6mmpolyurethane pipe

      Power: AC 220V 50Hz

      Net weight:43kg


ASTM F2029


Standard:Mainframe, footswitch Optional:micro-printer, micro-printer communication cable, software, communication cable.
