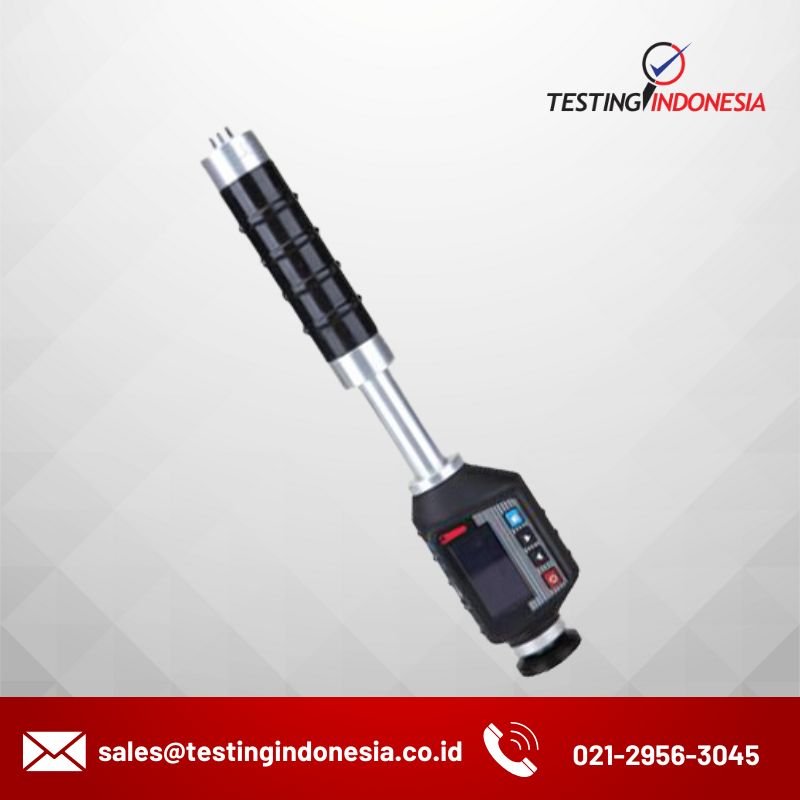

Integrated Hardness Tester TIME®5106 with Impact Device G

TIME5106 dynamic type hardness tester is integrated with impact device G for testing solid components like heavy castings and forgings

Description

TIME5106 dynamic type hardness tester is integrated with impact device G for testing solid components like heavy castings and forgings. It can perform hardness test in individual mode or in system mode.

Spesification

Impact deviceG type
Impact energy90mJ
Work modeUsed single or system mode
DisplayOLED screen, 128x64 dot matrix, brightness adjustable
Measuring range(200~750)HLG
Accuracy±12HLG
Repeatability12HLG
Measuring direction360°
Hardness scalesHLG、HB、HRB
Memory200 average value
InterfaceUSB
Data outputTransfer data to PC
Operating voltage3.3V
Operating temperature0~40℃
Humidity≤90%
Transmission distance10 m
Dimensions (mm)254 × 50 × 40
Weight (g)310
  Conversion Table of Hardness
MaterialHardness scaleRange
Steel and cast steelHB90~646
HRB47.7~99.9
Grey cast ironHB92~326
Nodular cast ironHB127~364
Cast aluminum alloysHB32~168
HRB23.8~85.5
