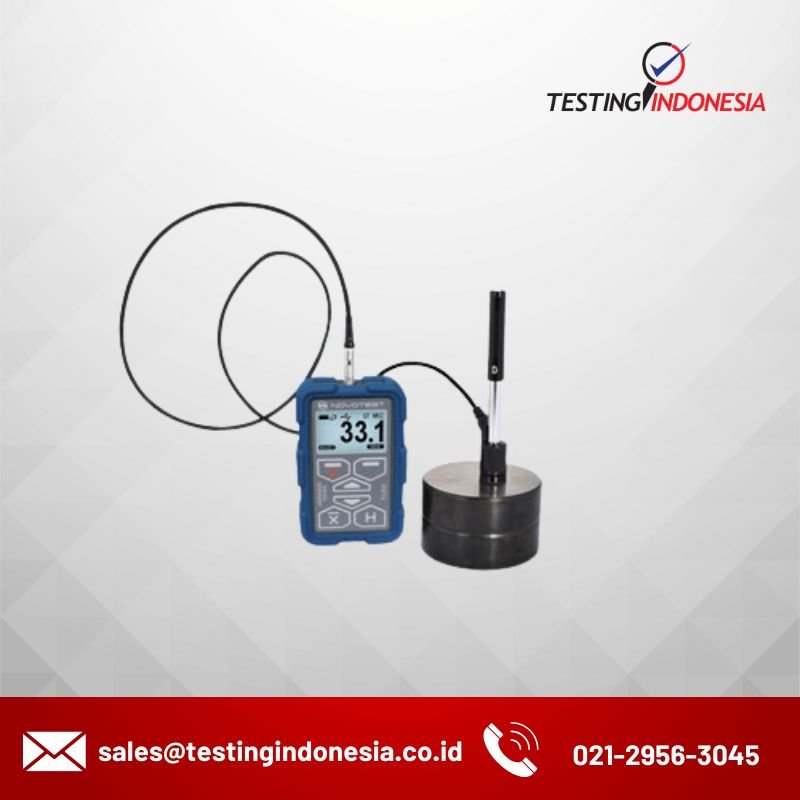

Leeb Hardness Tester NOVOTEST T-D2-R


Leeb Hardness Tester NOVOTEST T-D2-R is designed for rapid non-destructive hardness testing of various objects.
Leeb Hardness Tester NOVOTEST T-D2-R uses dynamic method of hardness testing.
Leeb probe is used for measuring the hardness of non-ferrous metals, cast iron, materials with coarse-grained structure, solid products, etc.

Leeb method for the hardness testing

The dynamic Leeb probe (dynamic D1 DC-type) is used for hardness measuring of massive objects (more than 5 kg, and more than 10 mm) and made of steels non-ferrous metals,  cast irons, coarse-grained materials, e.t.c. Also, dynamic method perfectly complements with UCI hardness measuring method when UCI method is not applied.
This method is very fast and easy: place the probe on tested object vertically to the object surface, charge the spring using special tip, press the button on the top of the probe to make measurement and save the hardness value, shown on the display. NOVOTEST-D2-R automatically calculates hardness for a wide range of materials, like steel, stainless steel, aluminum or cast iron, etc.
The combined hardness tester is the most universal, needs no recalibration, and is fully operational “out of the box”.

Key features:

  • Hardness testing of standard steels and alloyed steels
  • Hardness testing of cast iron and nonferrous metals
  • Testing of tensile strength of carbonized steels products of pearlite class for tension
  • Implementation of the rebound method (dynamic)
  • Allows user to test the products with weight more than 5 kg and thickness more than 10mm without any additional actions

Restrictions about the using of Leeb Hardness Tester NOVOTEST T-D2-R
If user need test items which are weighing less than 5 kg or thinner than 10 mm, he has to lap tightly the tested product to a surface of the base plate which are weighing more than 5 kg.


Range of hardness value
  • Rockwell, HRC: 20 – 70
  • Brinell, HB: 90 – 450
  • Vickers, HV: 230 – 940
  • Can be calibrated for any scale and any range.
Measurement accuracy
  • HV+ / – 3%
  • HRC+ / – 1,5%
  • HB+ / – 3%
Hardness scale
  • Leeb probe – HRC, HB, HV, HL
  • Additional custom scales for calibration.
  • Leeb probe – pre-calibrated for steel, alloy steel, stainless steel, aluminum or cast iron.
  • Additional custom scales and materials for calibration.
StandardsASTM A956, ASTM E140
Dimensions, mm122*65*23
Operating temperature range, ° C-20 to +40
Power supply2pcs AA batteries
Batteries life, not less, h20
Weight of electronic unit with batteries, no more, kg0.2


  • The lowest price among all similar devices
  • The best offer (functionality-quality-price ratio) among all dynamic hardness testers
  • DL type probe is the most universal, duy to it’s small size, it can be used for testing of samples with limited access (inside pipes, etc.)
  • Wide range of hardness measurement
  • Allows to test the products with coarse, non-uniform structure (castings, forgings)
  • Very ease and simplicity in setup and operation
  • Lower price in comparison with the ultrasonic hardness tester
User can save the results of hardness measurements into the internal memory of the device and after that, transfer them to the PC. Device allows user to operate in a wide range of the temperature. Hardness tester T-D2 has a brightness high contrast display. Device also has calibration modes for hardness testing of wide range of metals and alloys.

Standard Packages

  • Hardness tester
  • D1 dynamic DC-type probe
  • 2pcs AA batteries
  • Charger
  • USB cable
  • Operating manual
  • Software for PC
  • Calibration certificate
  • Case

Available Option

  • User can order the additional ultrasonic (UCI) probe U1 with activation code and will get combined hardness tester with two probes (dynamic D1 DC-type+UCI). So that, user can save money and needn’t to buy two probes at one time
  • Batteries
  • Charger
  • Hardness calibrations blocks
  • Impact bodies for dynamic probes
  • Portable grinding machine
  • Case for hardness tester
