Description

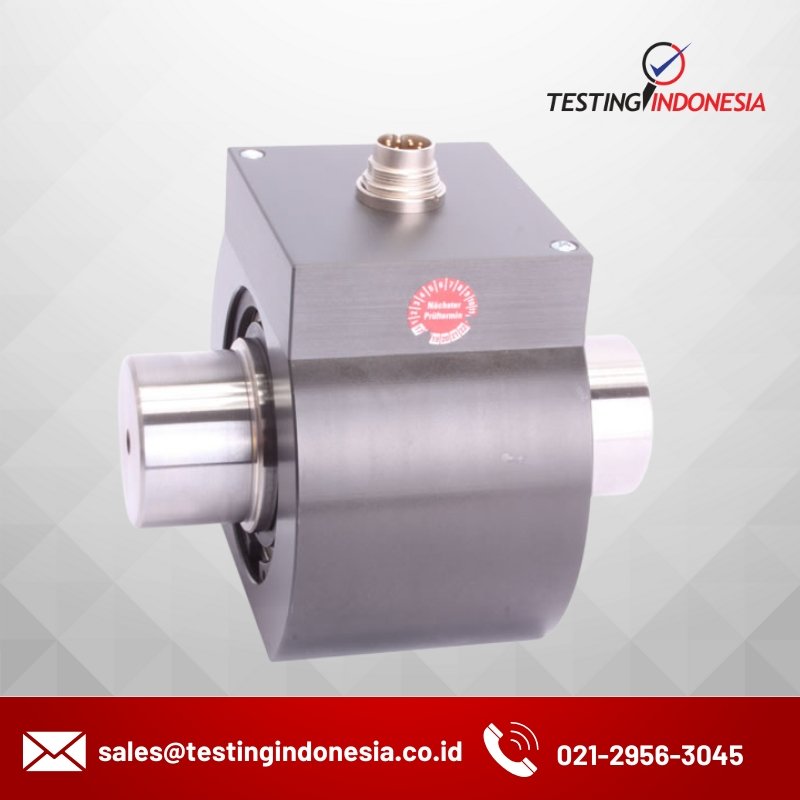

The DRBK low cost rotary torque sensor series manufactured by ETH Messtechnik in Germany have parallel shaft connections and offer a budget option for torque measurement in continuously rotating, high duty-cycle applications where the torque to be measured does not exceed 1000Nm.
The DRBK low cost rotary torque sensor is very compact, making it suitable for use where space to mount measuring devices is at a premium and is available with specially designed couplings to ensure optimum performance.
A ±5Vdc analogue output is provided as standard from the DRBK’s internal signal amplifier which offers a high 1kHz frequency response ensuring that dynamic torque changes are captured.
Product Dimensions
Capacity (Nm) | L | ØB | H | H1 ±0.05 | ØD g6 | L1 | L2 | A1 | A2 | M |
|---|---|---|---|---|---|---|---|---|---|---|
0-0.5, 0-1, 0-2 | 66 | 45 | 56 | 18 | 6 | 42 | 10 | 33 | 20 | M3x5DP |
0-5, 0-10, 0-20 | 80 | 70 | 72 | 28 | 15 | 48 | 15 | 39 | 31 | M4x6DP |
0-50, 0-100, 0-200 | 90 | 75 | 77.5 | 30 | 24 | 52 | 18 | 42 | 35 | M4x6DP |
0-500, 0-1000 | 120 | 105 | 97.5 | 40 | 40 | 65 | 26 | 50 | 55 | M5x10DP |
All dimensions are in mm.
