Low Profile Tension and Compression Load Cell

Category: Tags: , , , ,

Description

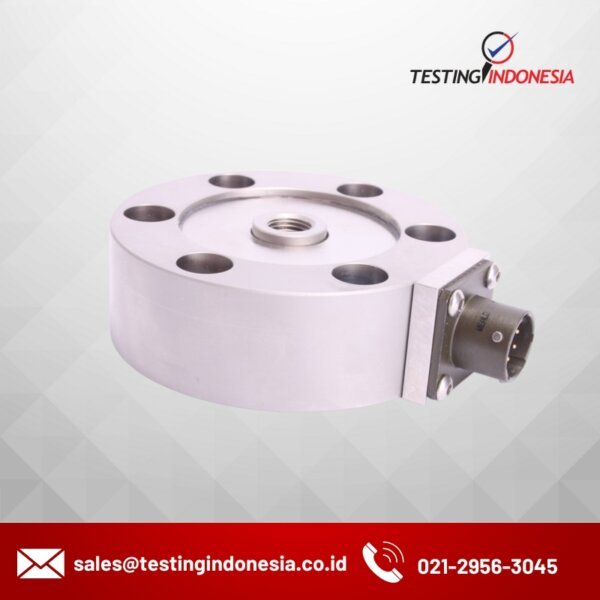

Applied Measurements DSCRC low profile tension and compression load cell/pancake load cell is manufactured from stainless steel and is suitable for use in weighing and force measurement applications.  They can operate in both tension and compression and are commonly used in materials testing and component fatigue testing applications for axial force measurements where a high accuracy, low-profile device is required.

The high-frequency response of our DSCRC low profile tension and compression load cell also make them ideal for dynamic force and load measurement applications.   The high-speed analogue SGA amplifier is an ideal complement to the DSCRC, offering a conditioned signal output of 4-20mA, ±5Vdc or ±10Vdc with a bandwidth of up to 6kHz.

As with all our load cells, the DSCRC low profile tension and compression load cell design can be modified to suit your exact requirements, with alternative threads, custom dimensions and customer-specific capacities.

If you require a rated capacity greater than 0-2kN, the DSCC low profile load cell covers forces from 0-5kN up to 0-1000kN as standard.

Product Dimensions

DSCRC Low Profile Tension and Compression Load Cell Outline Drawing
Capacity (N)
ØD
H
G
K
T
ØP
R
Natural Frequency (kHz)
200
76
25
60
6 off Ø7
M10 x 1.0
11
7
1.5
500
76
25
60
6 off Ø7
M10 x 1.0
11
7
2.2
10007625606 off Ø7M10x1.01173
20007625606 off Ø7M10x1.01174

All dimensions are in mm

Wiring Details

WireDesignation
Red+ve excitation
Blue-ve excitation
Green+ve signal (compression)
Yellow-ve signal
ScreenTo ground – not connected to load cell body

Features

  • Capacities: 0-200N up to 0-2000N
  • Output: 2mV/V
  • Environmental Protection: IP65
  • High Accuracy: <±0.1%/RC
  • Optional Fatigue-Rated Versions

Spesification

Rated Capacity (RC)N0-200, 0-500, 0-1000, 0-2000
Operating ModesTension/Compression / Tension & Compression
Sensitivity (RO)mV/V2.0 nominal (1.0 on fatigue-rated versions)
Zero Balance/Offset±%/Rated Output<5.0
Output Symmetry (tension vs. compression)%/Rated Output<0.5 typical
Non-Linearity±%/Rated Output<0.10
Hysteresis%/Rated Output<0.08
Repeatability±%/Applied Load<0.03
Temperature Effect on Zero±%/Rated Capacity/ ˚C<0.005
Temperature Effect on Sensitivity±%/Applied Load/ ˚C<0.005
Input ResistanceOhms375 nominal
Output ResistanceOhms350 nominal
Insulation ResistanceMegohms>5000 @ 50Vdc
Excitation VoltageVolts AC or DC10 recommended (2-15 acceptable)
Operating Temperature Range˚C-20 to +80
Compensated Temperature Range˚C0 to +60
Storage Temperature Range˚C-20 to +80
Safe Overload% of Rated Capacity150
Ultimate Overload% of Rated Capacity300
Deflection @ Rated Capacitymm<0.4 nominal
Fundamental Resonant Frequency*See table
IP Rating (Environmental Protection)IP65 (2000N version) / IP52 (1000N and below)
Weight (excluding cable)kg0.75 (1.65 with base)
Fatigue Life108 cycles typical (109 cycles on fatigue-rated version)
Cable Length (as standard)metres3
Cable Type4 core screened, PUR sheath, Ø5
Electrical Connections6 Pin Bayonet Lock Connector (MIL-C-26482-10-6P) + mating cable assembly
Construction MaterialStainless Steel
Resolution1 part in 250,000 (with appropriate instrumentation)
*The resonant frequency is calculated with the body of the load cell attached to a large plate, ensuring that only the sensing element oscillates: This is vital to achieve the highest natural frequency and subsequent frequency response.
