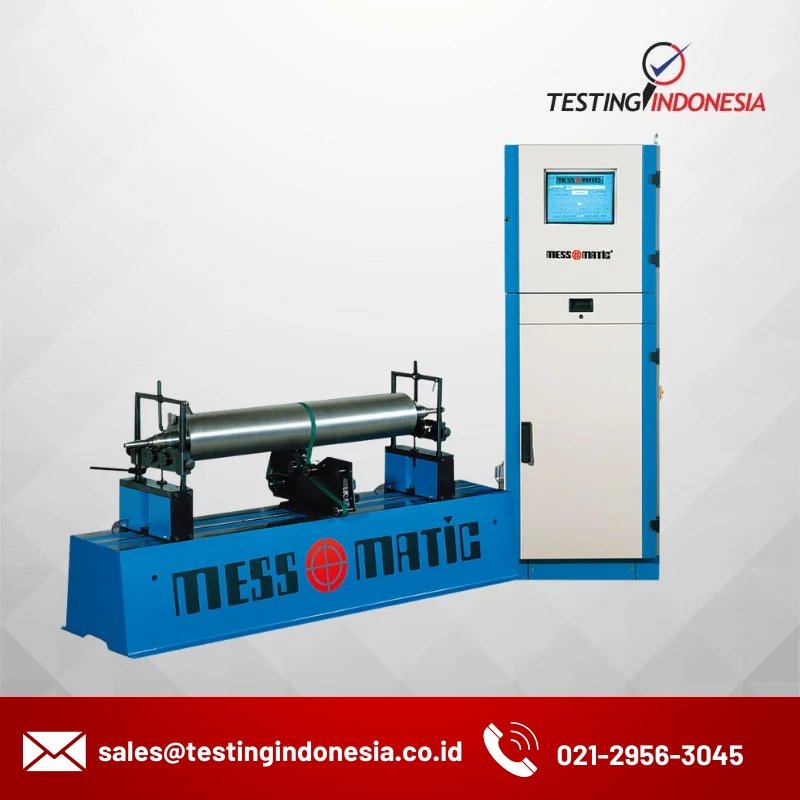

Mess-Matic SYM-2000

Description

This model is designed for the balancing of motor rotors, pump rotors etc. Motor power is transmitted by belt drive, pneumatic tensioning. The control unit is equipped with an industrial computer. Easy to use by the operator. Motor motion is controlled by electronic speed control device. Drilling, milling and welding units can be integrated to the system upon request.

Technical Features

Motor Drive (Kw) 18
Balancing Type Static – Dynamic
Rotor Weight (Kg) 20-3000
Pedestals Hard Bearing
Diameter of Rotor (mm) 200 – 2500
Control Unit Industrial PC
Motor Speed Control Siemens / Lenze
Self-Calibration Yes
