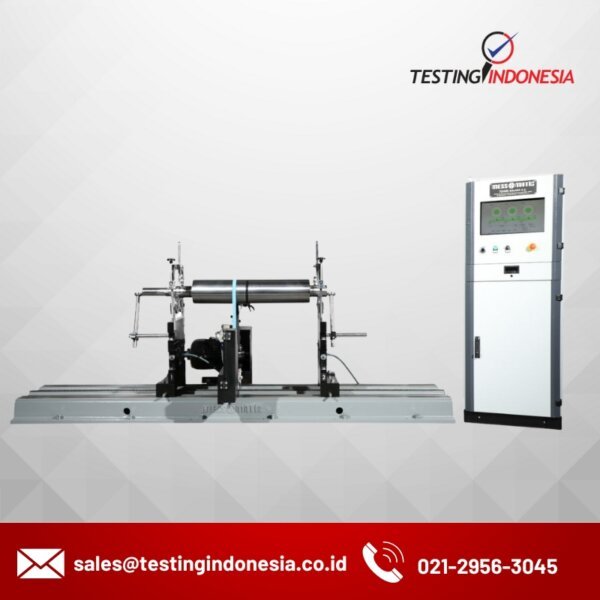

Mess-Matic SYM-5000

Description

HORIZONTAL BALANCING MACHINES (2-1100 KG)

SYM 5000 series horizontal balancing machines are innovatively designed for balancing operations of various rotors between 2 – 1100 kg, with cardan or belt drive system. By help of 2 universal rigid type pedestals having vibration sensors, bearings, and protection cover, cylindrical rotors having their own shaft journals and disc shaped rotors on balancing arbors can be balanced with high balancing accuracy.

These machines are used for balancing in horizontal axis of fans, cylinders, mills, rollers, rotors of electric motor, turbine, agricultural and textile machines etc. Optionally, horizontal or vertical axis working manual drilling unit can be mounted on the system and all over the balancing machine can be surrounded by switch controlled protection cage according to CE regulations. With the user-friendly software, the operation is very easy.

Features

  • Manual loading & unloading
  • Automatic unbalance measurement with high accuracy
  • Manual unbalance correction (if required)

Optional Accessories

  • Unbalance correction with horizontal drilling unit
  • Unbalance correction with vertical drilling unit
  • Unbalance correction with spot welding unit
  • Switch controlled protection cage according to CE regulations
  • Additional bench

Technical Specifications

Technical Specifications
Unit
SYM 4500
SYM 5300
SYM 5700
SYM 5900
Maximum Rotor WeightKg1503007001100
Minimum Rotor WeightKg251010
Maximum Rotor Diametermm75095014001400
Bearing DiametermmØ12-Ø140Ø15-Ø200Ø15-Ø145Ø15-Ø145
Balancing Speed (*)rpm1-20001-20001-20001-2000
Optional Additional Benchmm+1000
Compressed Airbar6



(*) Balancing speed may vary depending on rotor tube diameter and weight.
